Mobile lines for work on site
Solutions inspired by your ideas and our experience
Equipment
Decoiler
1 pc;

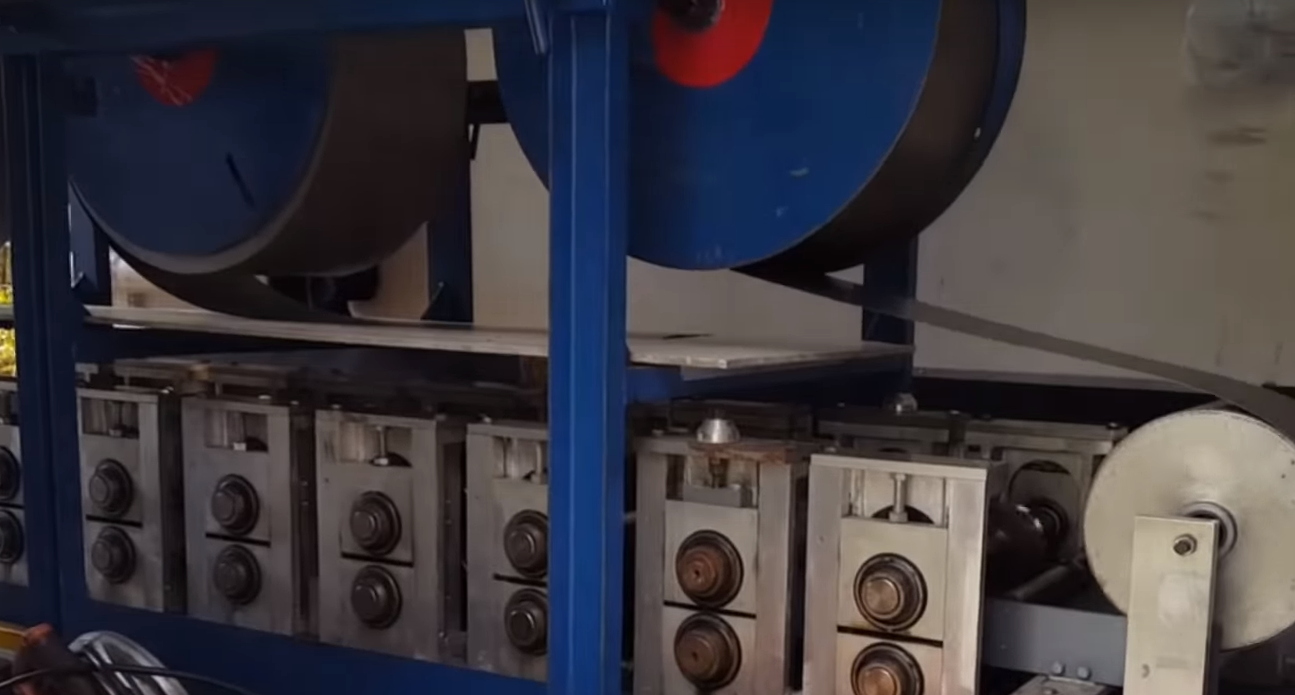

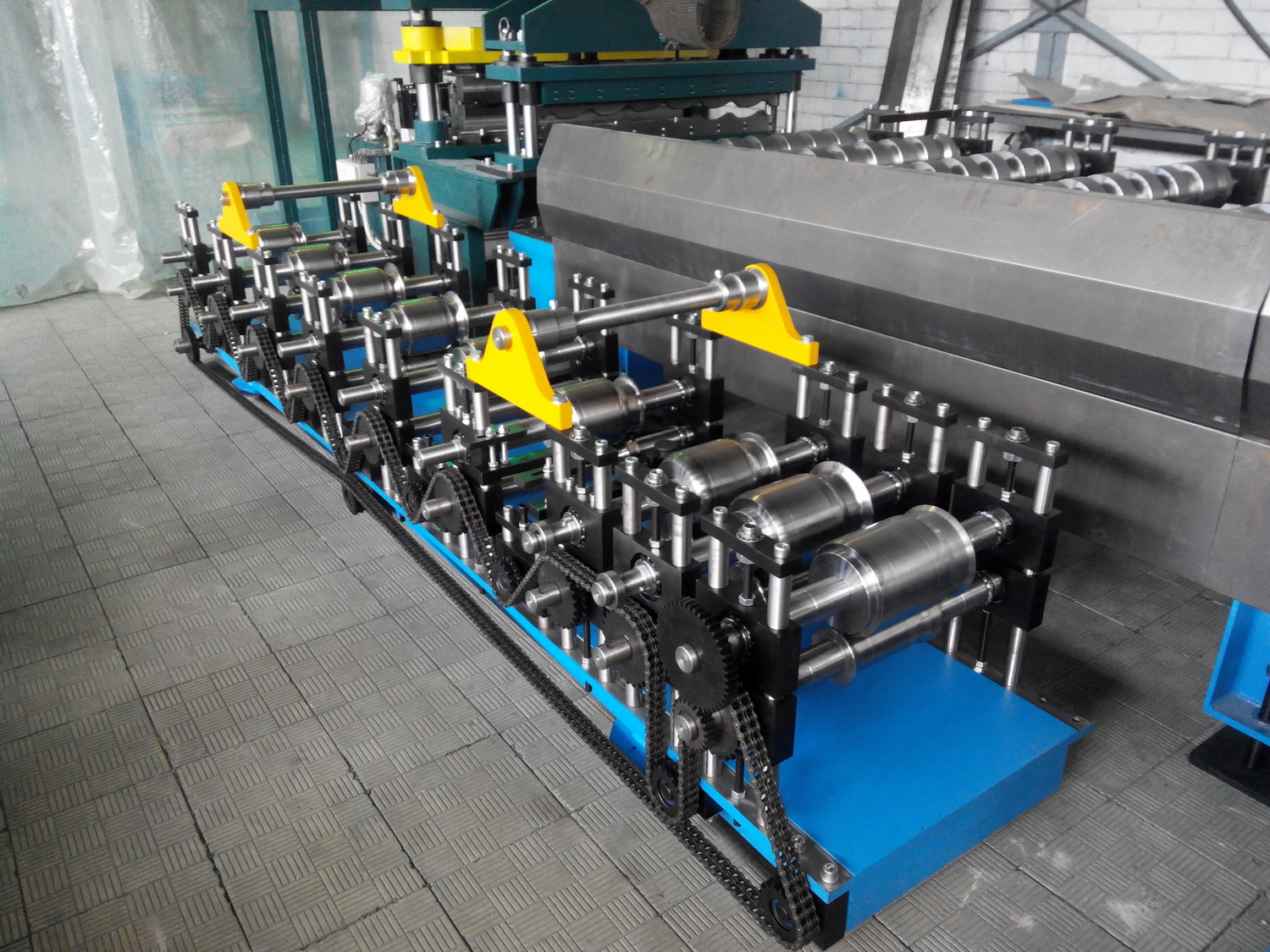

Roll forming mill
1 pc;
Cutting device
1 pc;
Cutting device
1 pc;
Receiving supports
1 pc;
Options
- Additional automation;
- Complete cutting device;
- Re-equipment of lines for stationary work.
Description
Equipment for working on a trailed platform.
This solution is used for the production of finished products and their installation without joints directly at the facility. Loading/unloading of rolls of metal is carried out in manual mode.
Specifications
Processed material
Galvanized sheet steel with plastisol or pural finish. Sheet steel class: DX52D + Z (EN 10142: 2000)
Thickness of the processed material
0,4-0,5 mm
Bar width
According to drawings
Profiling speed
10 run, m./min
Accuracy of cutting
Provided manually.

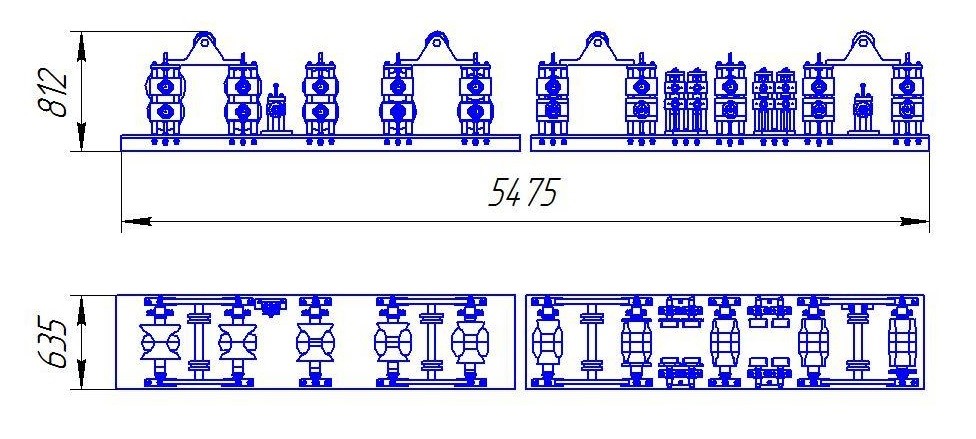

Roll Forming Mill Type
Rack
Rolling system
Serves for rolling corrugations on a profile / punching ventilation holes on a profile
Cutting device type
Manual guillotine. Cutting is carried out when the line comes to a complete stop.
Decoiler type
Rack, non-drive, placed on the mounting
Decoiler lifting capacity
200 kg.
Operating personnel
2 persons
