C U Z profiles

Solutions inspired by your ideas and our experience

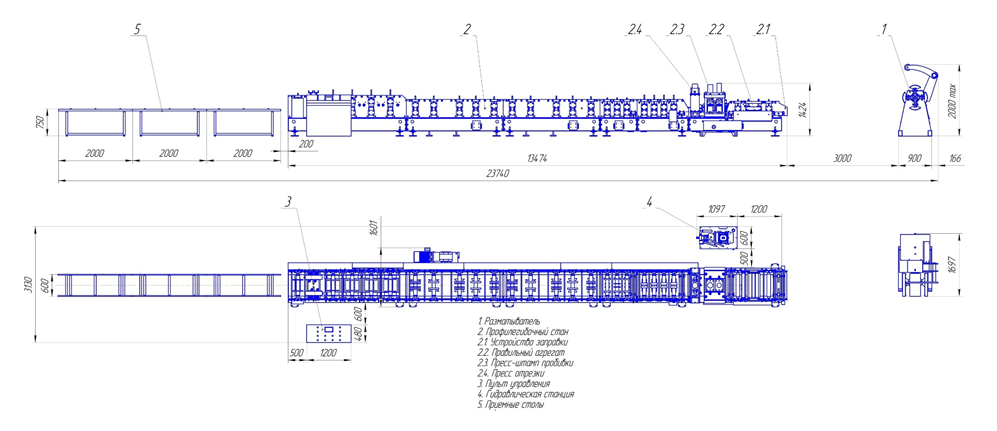

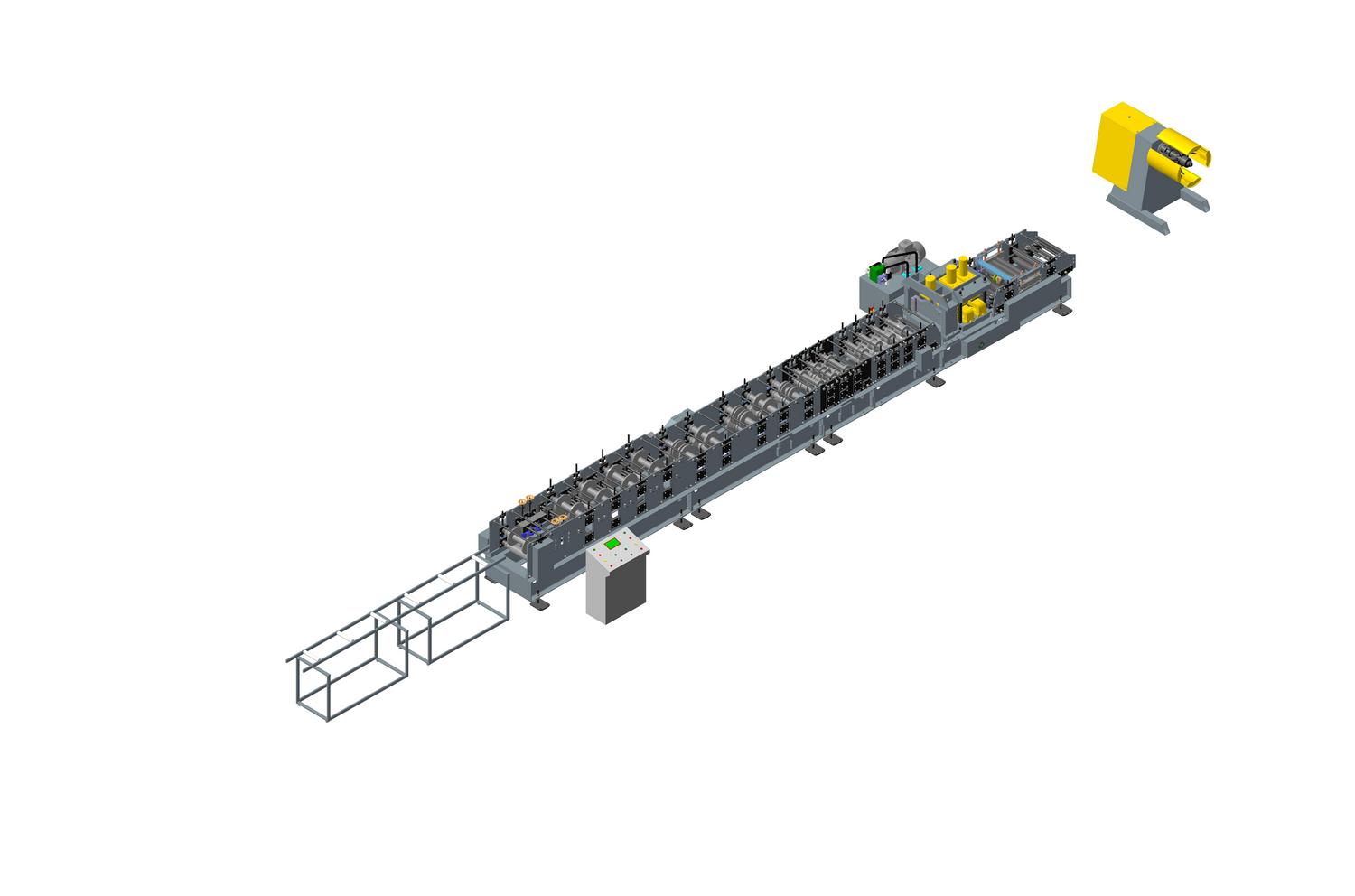

Equipment

Decoiler 1 pc;

Straightening device 1 pc;

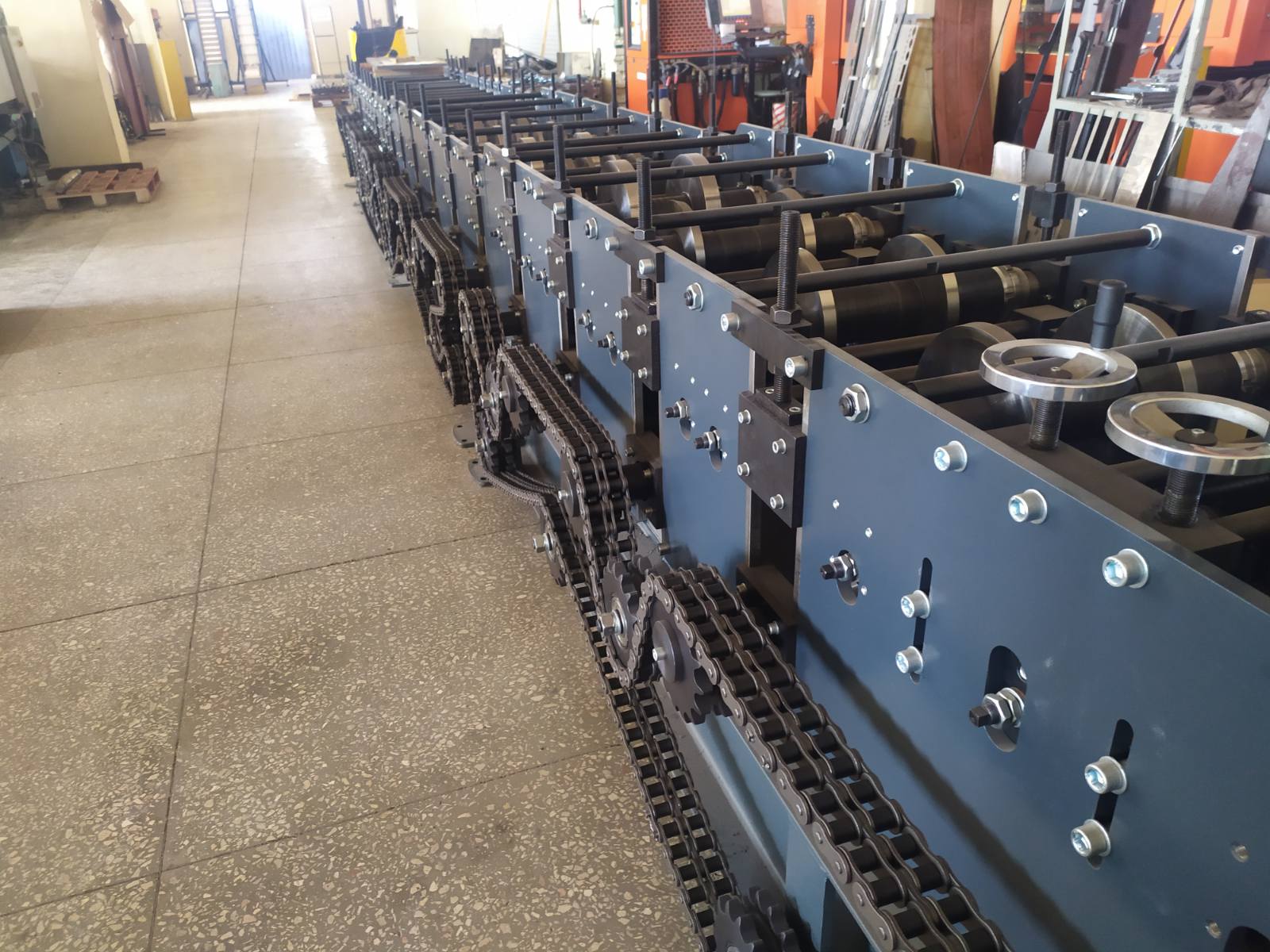

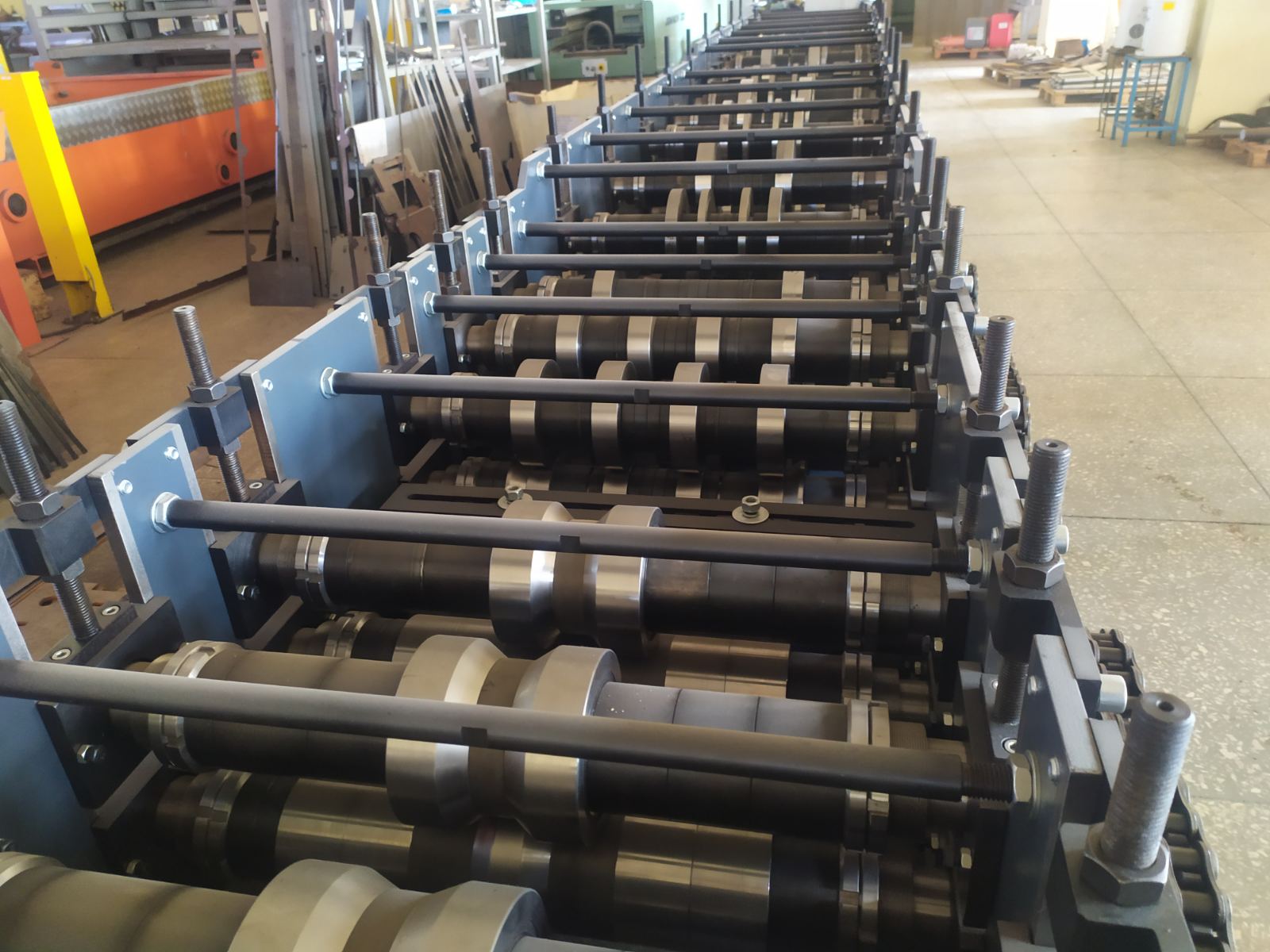

Roll forming mill 1 pc;

Press-stamp 1 pc;

Cutting device 1 pc;

Hydraulic station 1 pc;

Pick-up table 2 pcs.

Control cabinet 1 pc;

Stamping equipment

Options

Replaceable die equipment;
Double stamps;
Fences, sensors, cameras of critical areas, monitors;
Tracking module (Operation, maintenance, simple, remotĕ access, statistics. Tracking of the line by the management);
Logistics and packaging.

Description

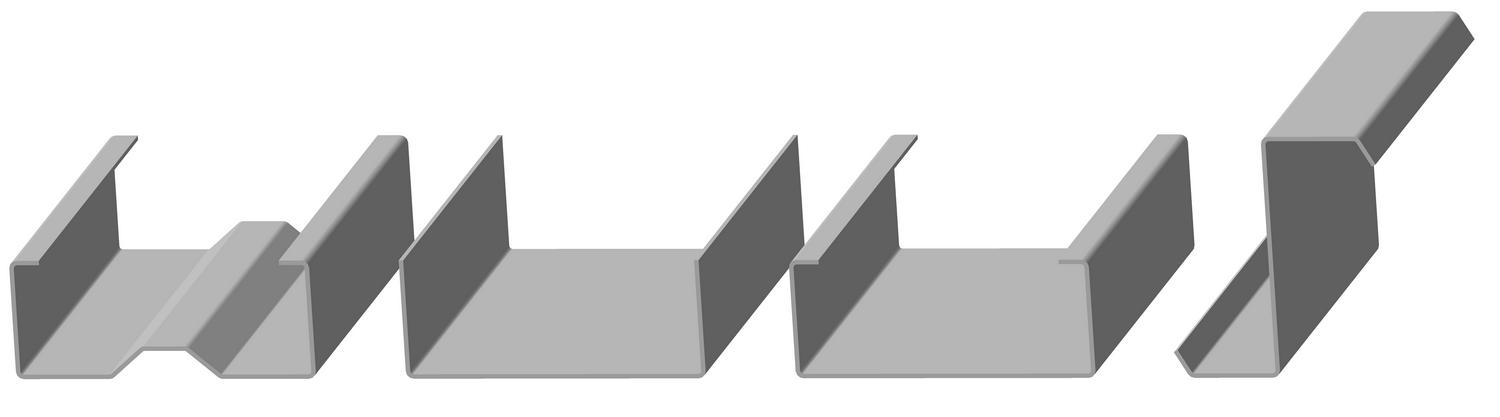

This type of equipment is designed for the production of profiles C / U / Z / Sigma / Omega, etc. from sheet steel 1.0-4.0 mm. These profiles are widely used in civil construction, namely for the installation of prefabricated buildings (BMZ profile, LGS).

Specifications

Processed material Galvanized sheet steel (high-quality structural carbon steel DC01, DC04)

Thickness of the processed material 1,0-4,0 mm

Type of produced profileA C/U/Z/Sigma/Omega и др

Workpiece width According to drawing

Profiling speed 30 run. m. /min

The number of pairs of work stands Up to 32 pcs.

Accuracy of cutting ± 5 mm

Cutting device type Hydraulic

Decoiler type Console drive

Decoiler lifting capacity 3000 kg

Work mode Semi-automatic
