Ventilation profiles
Solutions inspired by your ideas and our experience

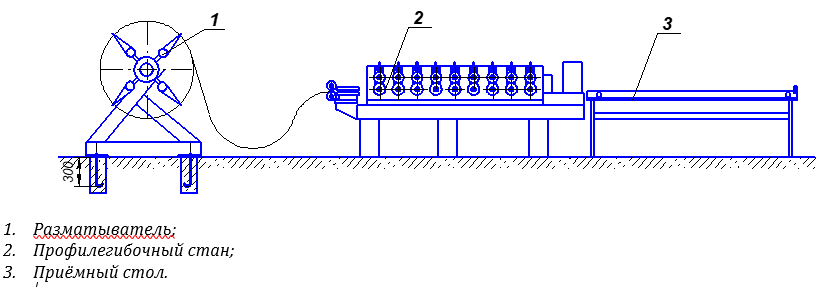

Equipment
Reel
1 pc;
Rolling mill
1 pc;
Cutting device
1 pc.
Pick-up table
2 pcs;
Control cabinet
1 pc.
Options
- Fences, sensors, cameras of critical areas, monitors;
- Tracking module (Operation, maintenance, simple, remote access, statistics. Tracking by the management of the line.);
- Logistics and packaging;

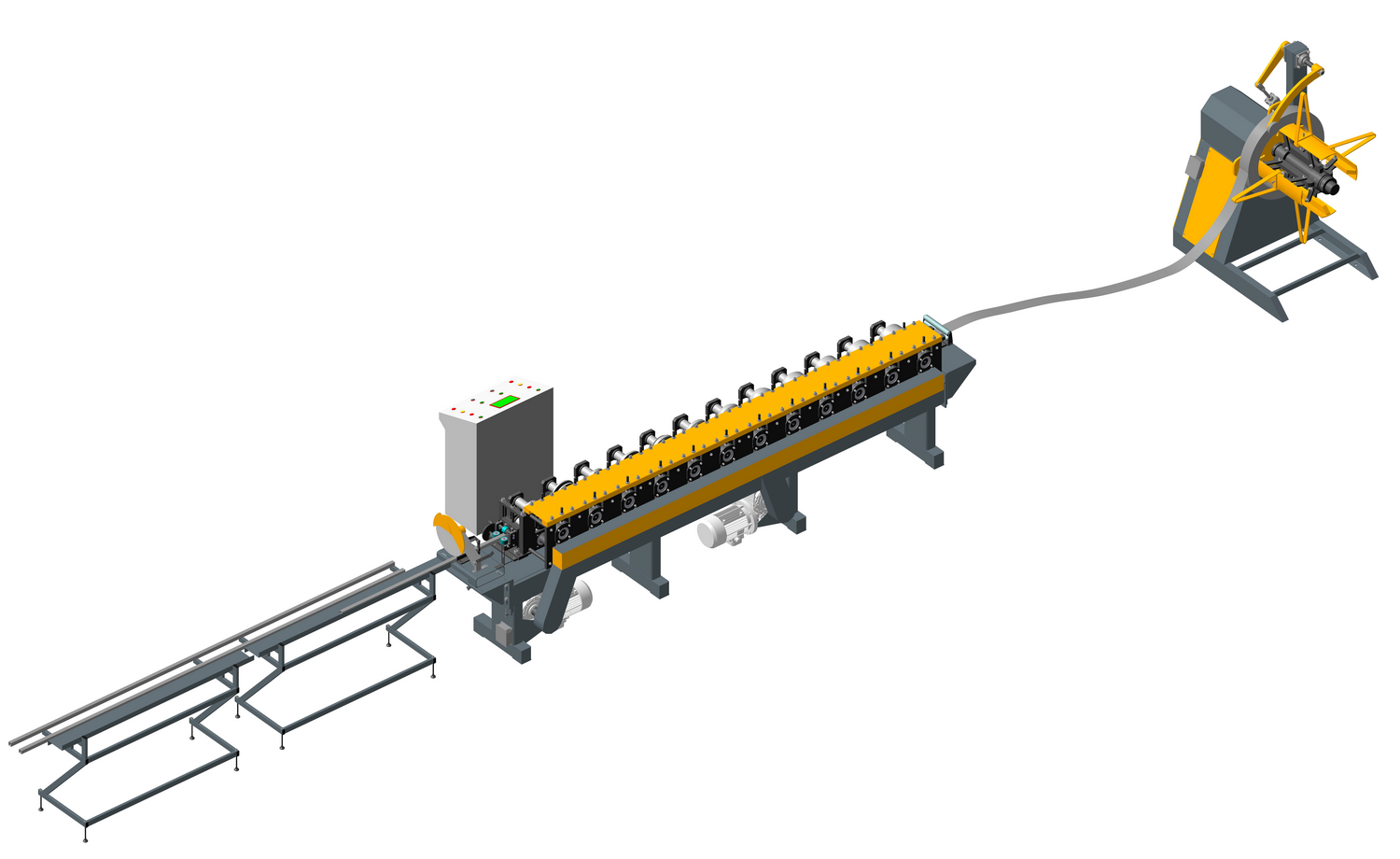

Description of the line

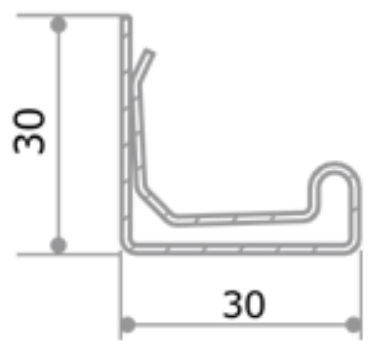

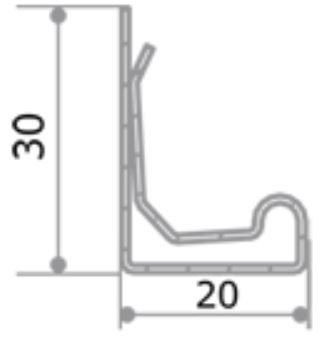

Mills for the production of flange profiles S20 and S30 for air ducts (ventilation profile, mounting rail, euro bus).
The profiles are made of galvanized sheet steel with a thickness of 0.8-1.5 mm.
Specifications
Processed material
galvanized sheet steel with continuous lines according to GOST standard 14918
Thickness of the processed material
0,8-1,5 mm
Width of the workpiece
82, 116 mm
Profiling speed
20 running meters / minute
Accuracy of cut-off
± 5 mm
Work mode
Semi-automatic
Maximum length of the profile received by the pick-up table
4000 mm
Control cabinet
Provides automatic operation of the line after filling the material into the roll forming mill, equipped with a frequency converter
Operating staff
1-2 persons
