Silos
Solutions inspired by your ideas and our experience

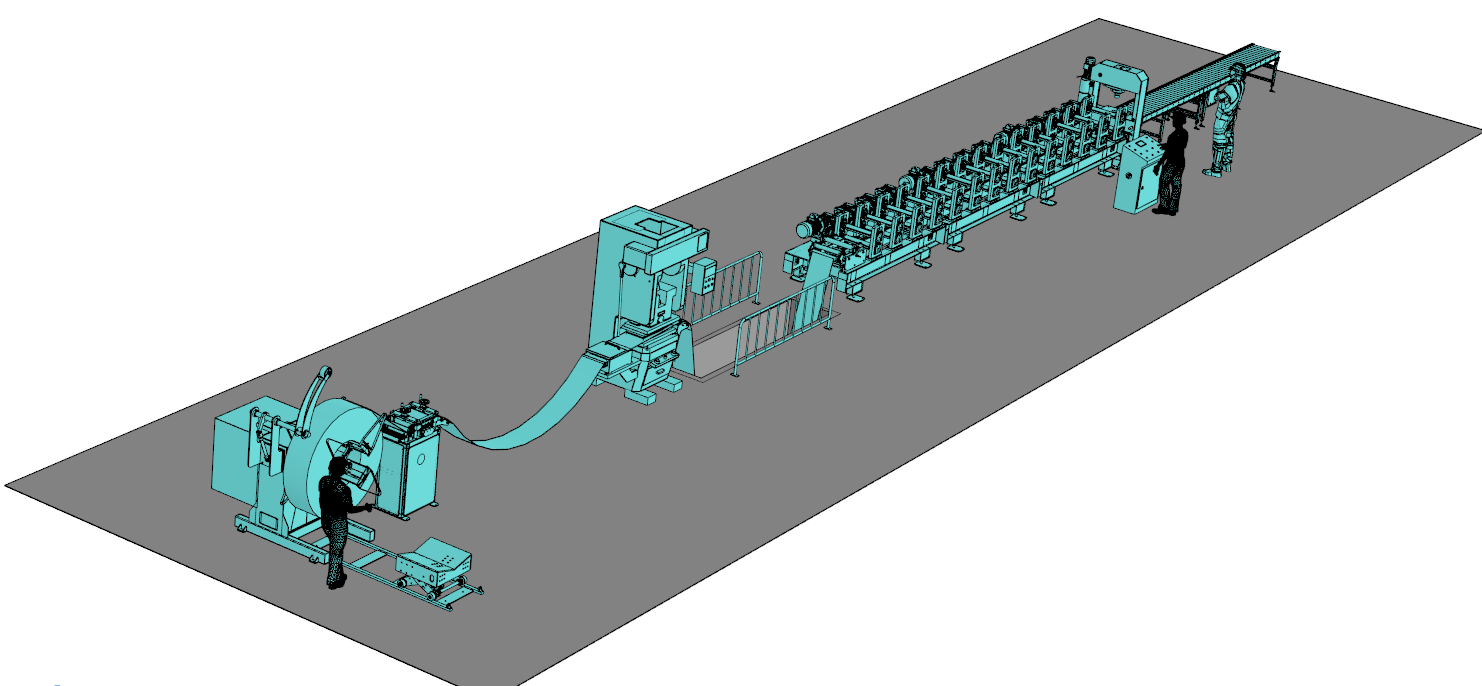

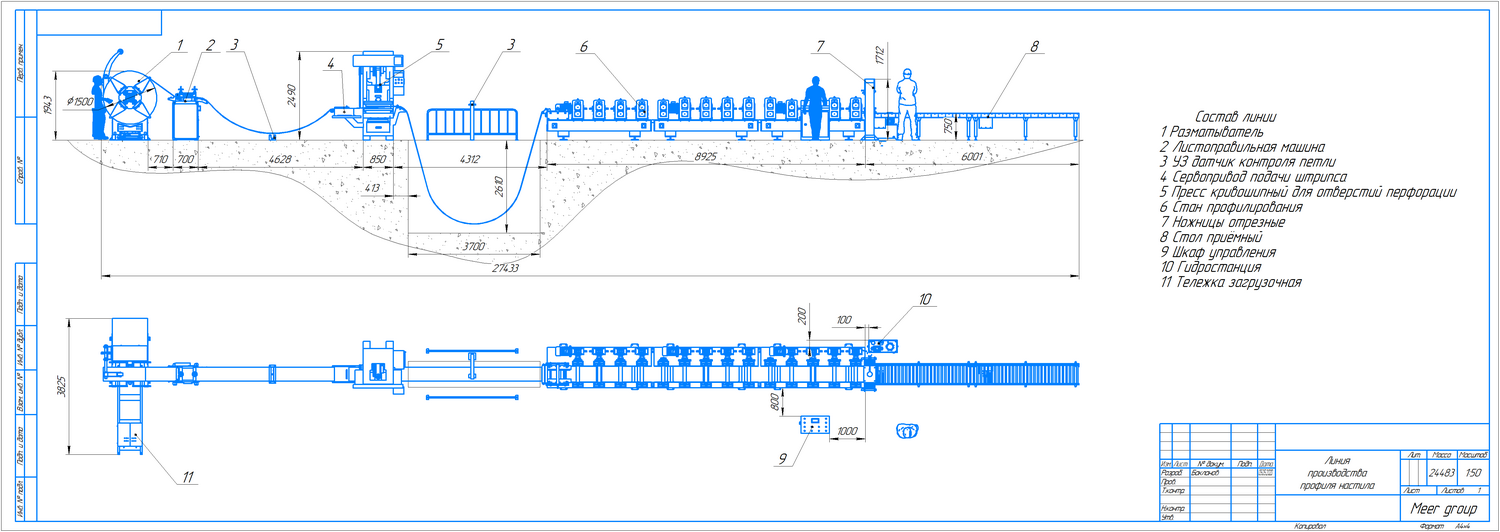

Equipment
Decoiler
1 pc;
Rolling mill
1 pc;
Cutting device
1 pc;
Receiving table
2 pcs;
Control cabinet
1 pc;
Options
- Fences, sensors, cameras of critical areas, monitors;
- Tracking module (Operation, maintenance, simple, remote access, statistics. Tracking the line by management.);
- Logistics and packaging.
Description
The Meer Group company is engaged in the manufacture and supply of equipment for the installation of Silos – warehouses for the storage of bulk materials.
The equipment for the production of steel silos is designed to work with coiled steel with a thickness of 2 to 4 mm and a width of 500 mm. The technological process consists of the procedure of forming a spiral from a steel strip and folding the seams, as a result of which it is possible to obtain silos with a diameter of 5 to 35 meters.

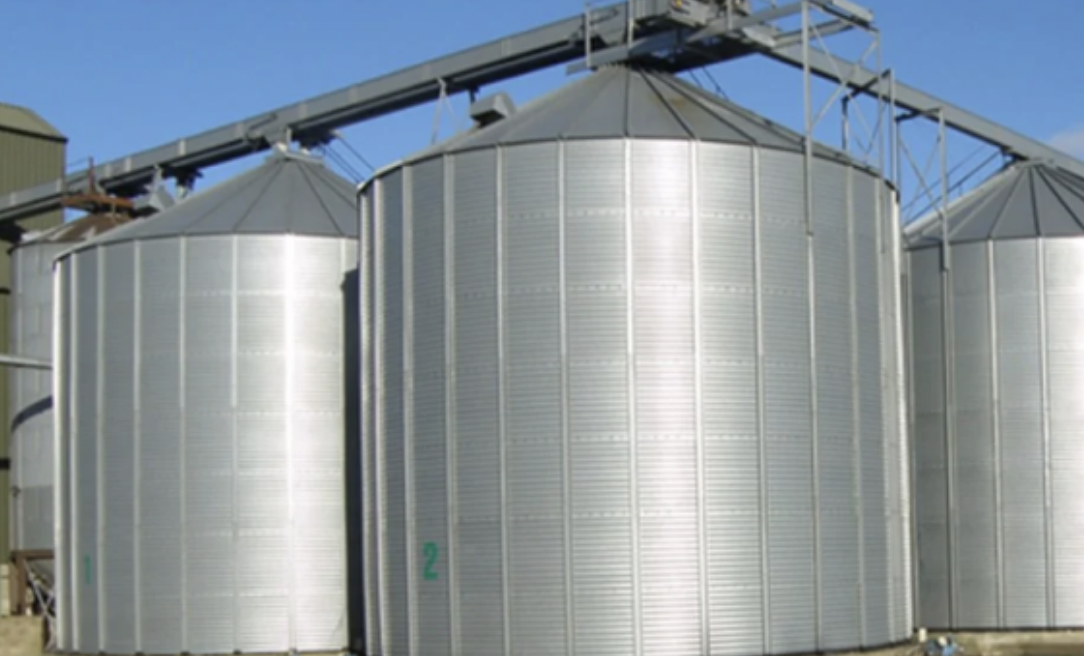

Steel spiral silos are suitable for storing grain, ash, wastewater, etc.
The complex is designed individually for each Buyer.
Specifications
Material
Galvanized steel, stainless steel 2-4 mm.
Strip width
Up to 500 mm.
Finished silo diameter
5-35 m.
Silo height
Up to 30 m.
Profiling speed
7-10 m/min
