Profiles with rebate lock
Solutions inspired by your ideas and our experience

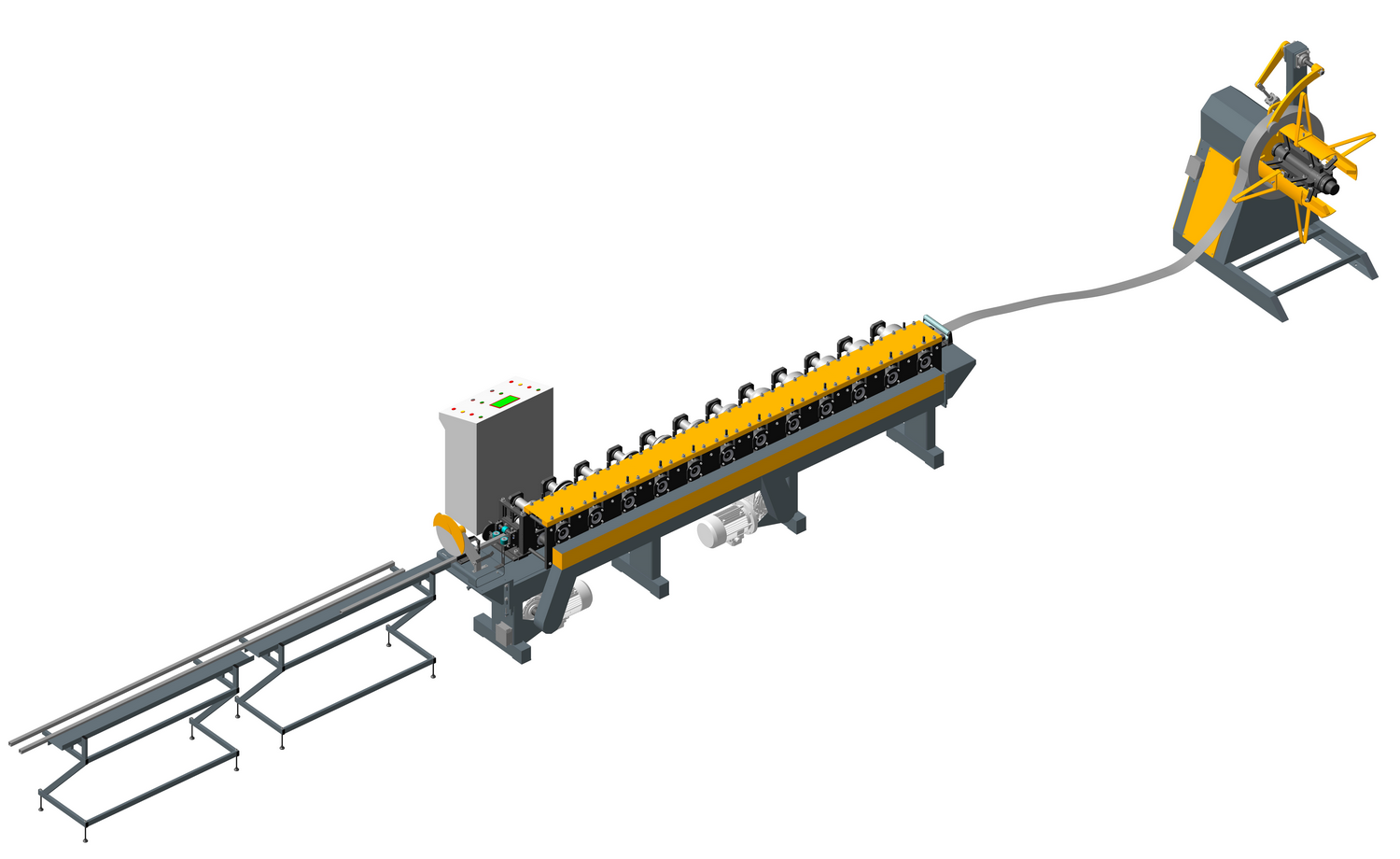

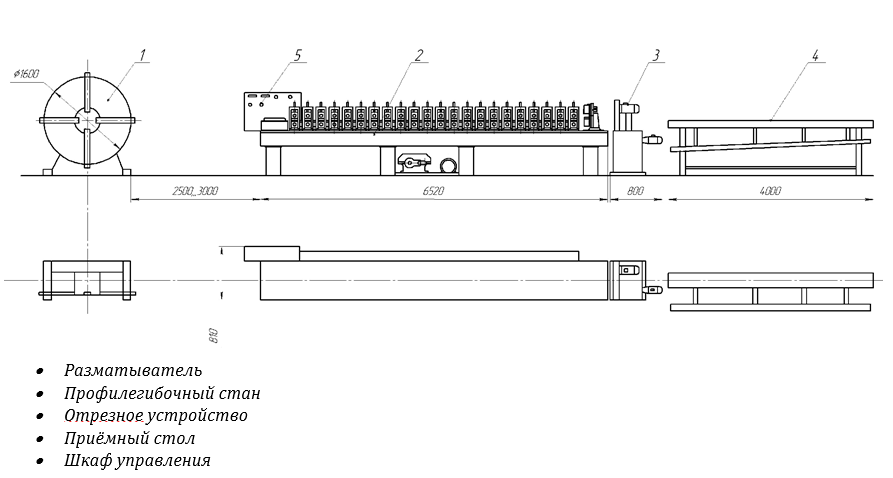

Equipment
Decoiler
1 pc;
Rolling mill
1 pc;
Cutting device
1 pc;
Pick-up table
2 pcs;
Control cabinet
1 pc;
Options
- Fences, sensors, cameras of critical areas, monitors;
- Tracking module (Operation, maintenance, simple, remote access, statistics. Tracking by the management of the line.);
- Logistics and packaging;
Description

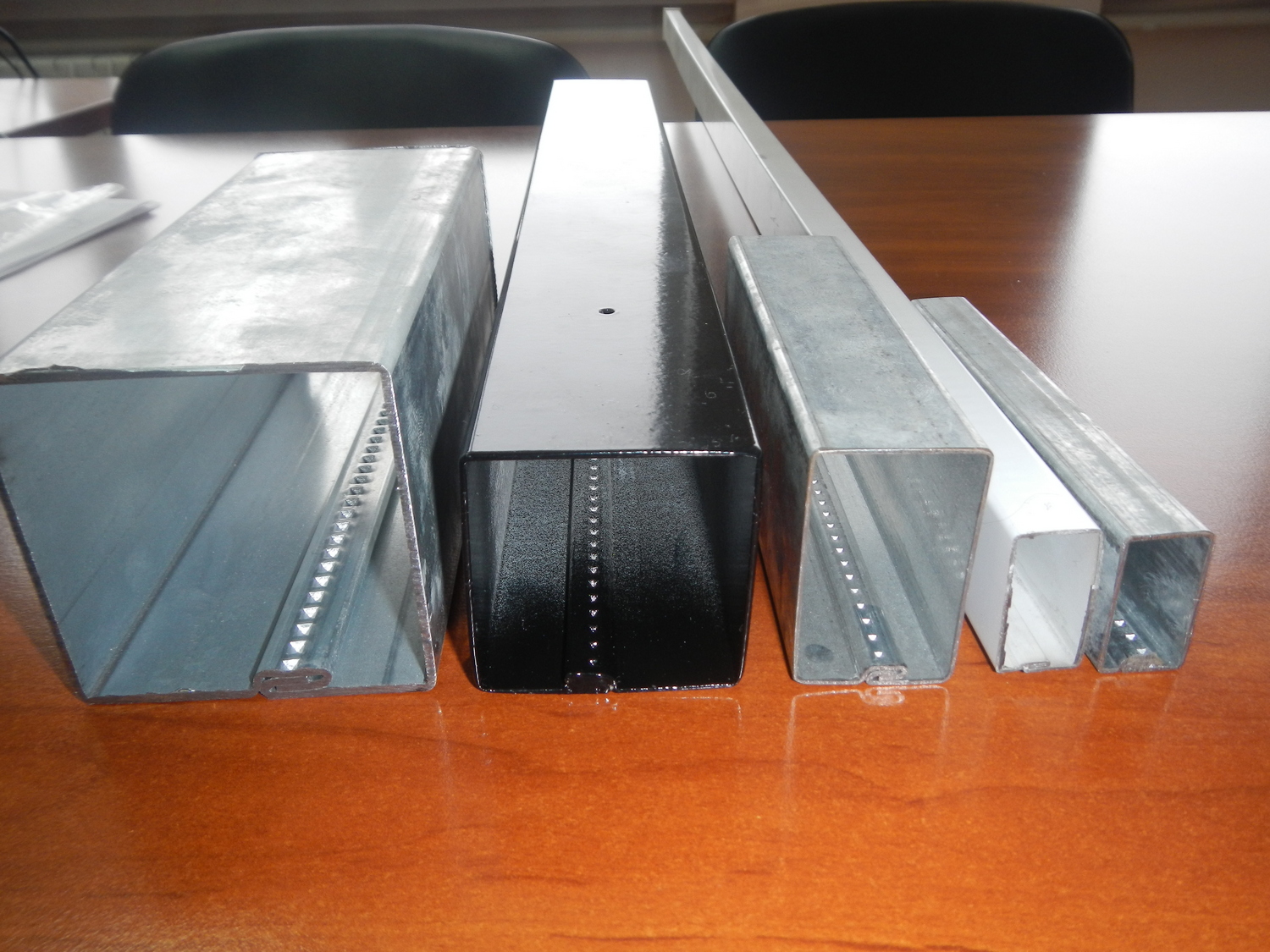

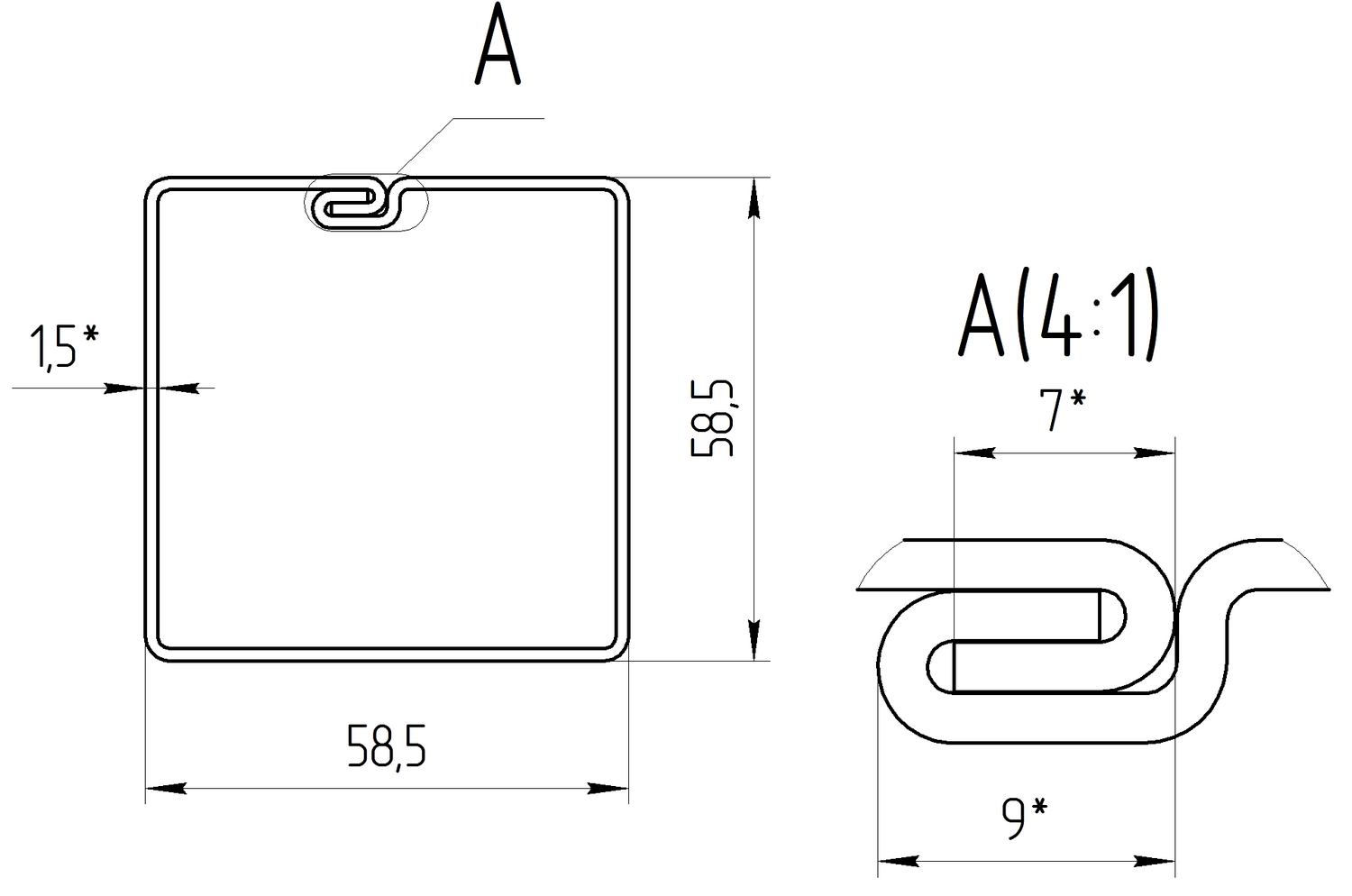

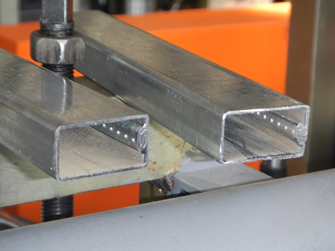

The lines produce shaped pipes (from 20×20 mm. To 100×100 mm.) and round pipes (from 16 mm to 60 mm.) With a seam lock. The profiles are made of galvanized sheet steel with a thickness of 0.8 mm to 2.0 mm.
Specifications
Processed metal
Galvanized sheet steel from continuous lines (steel grade DX 52- DX 53)
Thickness of processed metal
0,8-2,0 mm
Workpiece width
60-210 mm
Profiling speed
20 run. m. / min
Cutting accuracy
± 5 mm
Work mode
Semi-automatic
Maximum length of the profile received by the pick-up table
4000 mm
Control cabinet
Provides automatic operation of the line after filling the material into the roll forming mill, equipped with a frequency converter
Operation staff
1-2 persons
