Profiled flooring
Solutions inspired by your ideas and our experience

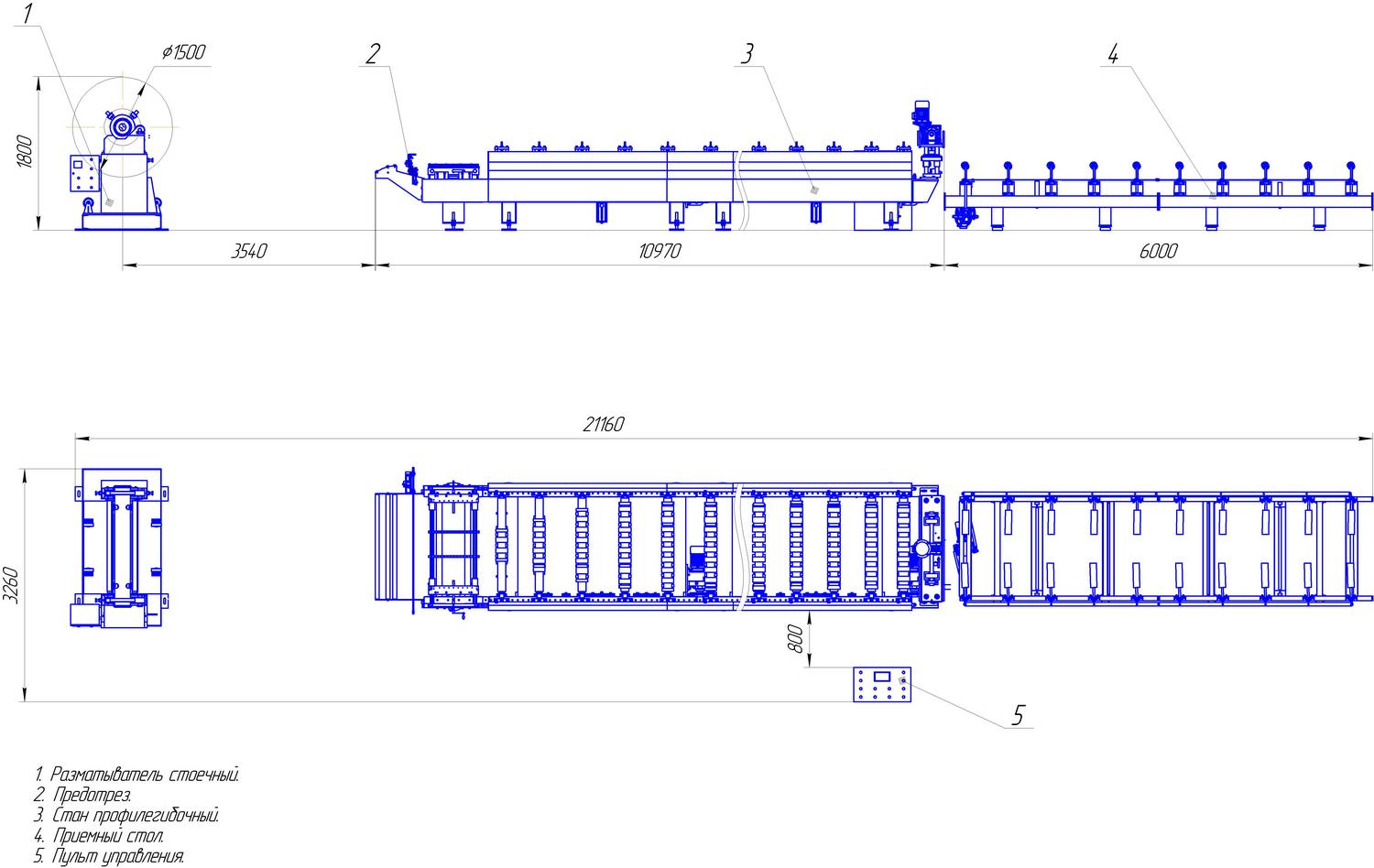

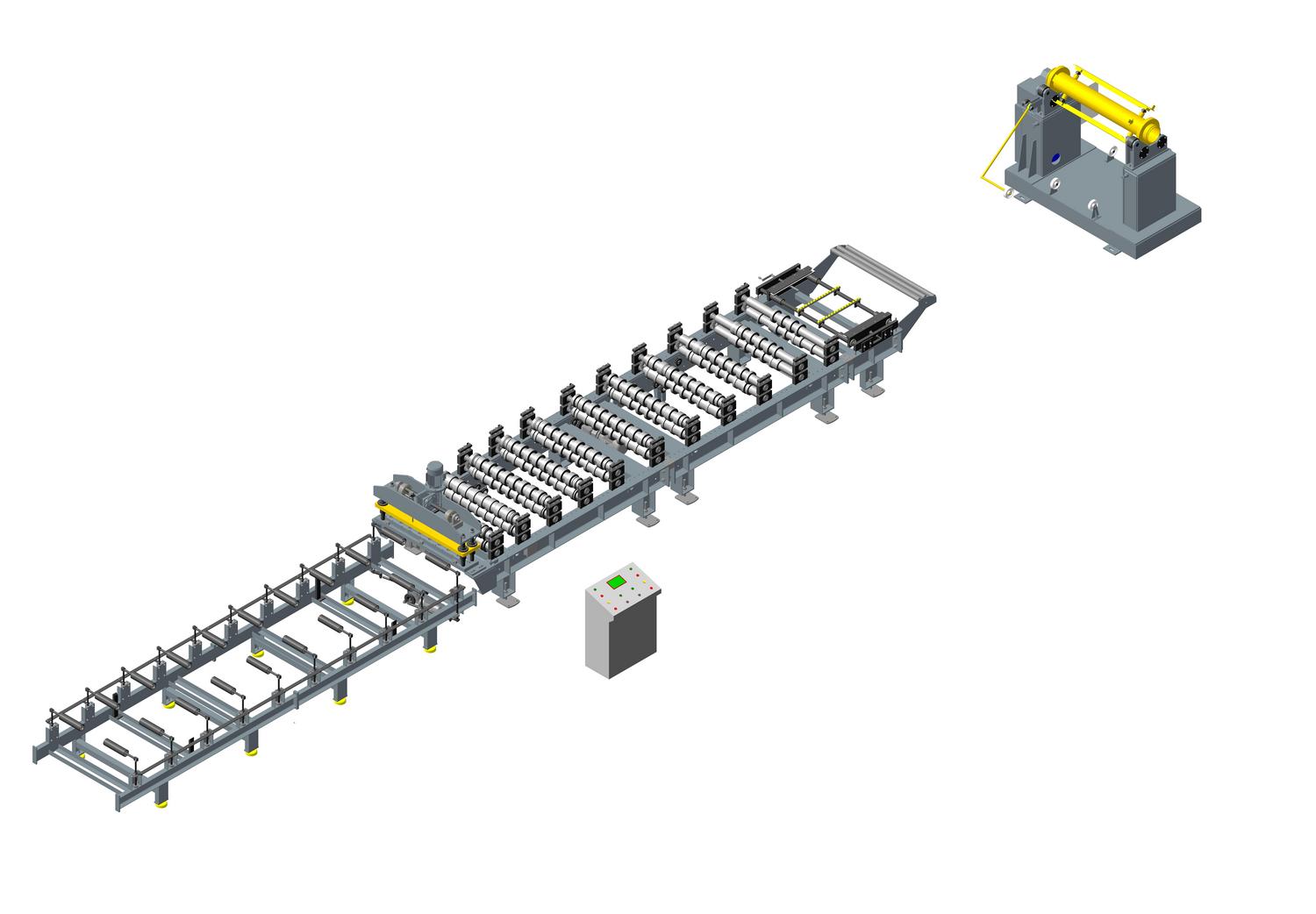

Equipment
Decoiler
1 pc;
Film applicator
1 pc;
Profile roll forming machine
1 pc;
Guillotine scissors
1 pc;
Receiving table stacker
1 pc;
Control cabinet
1 pc;
Options
Description

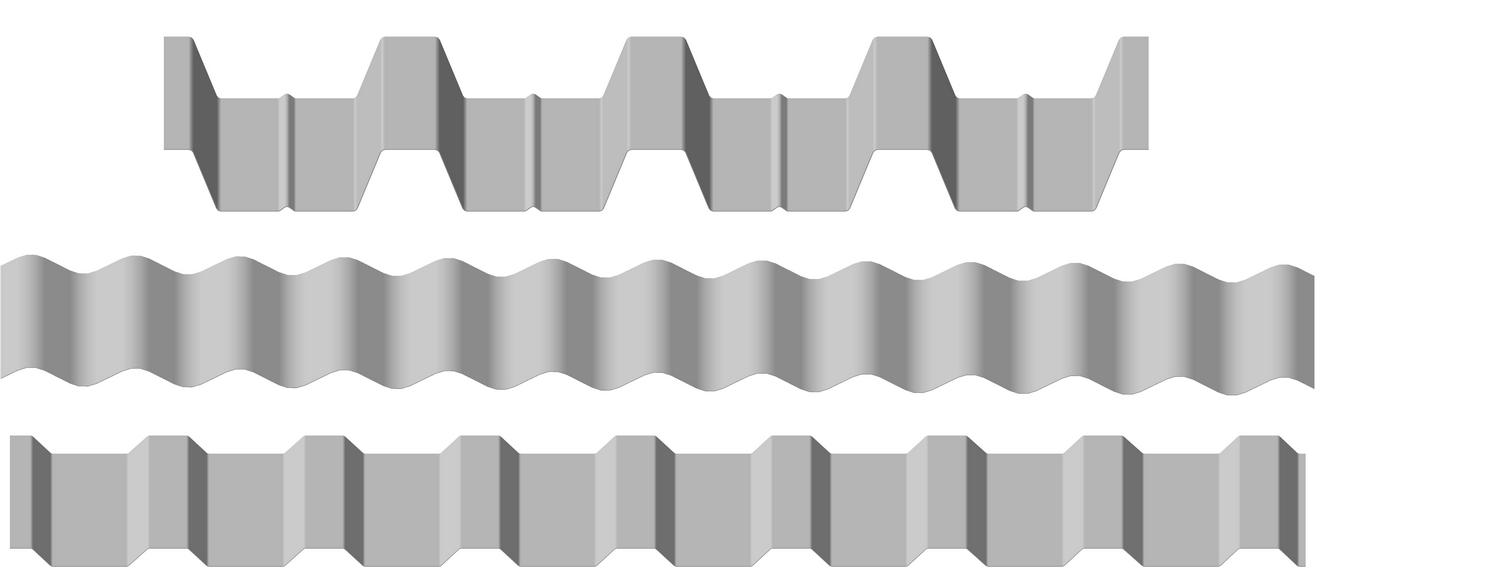

The line for the production of roofing and wall sheeting is designed for the production of profiled sheets with trapezoidal and wavy corrugations from 6 to 114 mm in height from galvanized steel sheet 0.35 – 1.2 mm thick, as well as from metal with a paint and varnish, decorative and protective coating.
Specifications
Prcocessed material
Galvanized sheet steel with polymer coating
Thickness of the processed material
0,35 - 1,2 mm
Workpiece width
1100; 1250 mm
Profile height
6-114 мм.
Profiling speed
25 run. m./min.
Cutting accuracy
+/- 5 mm.
Control cabinet
Provides automatic operation of the rolling line after filling the material into the roll-forming mill, equipped with a frequency converter
Operation staff
1 - 2 persons
Weight of the line
7000-35000 kg
