Noise screens
Solutions inspired by your ideas and our experience

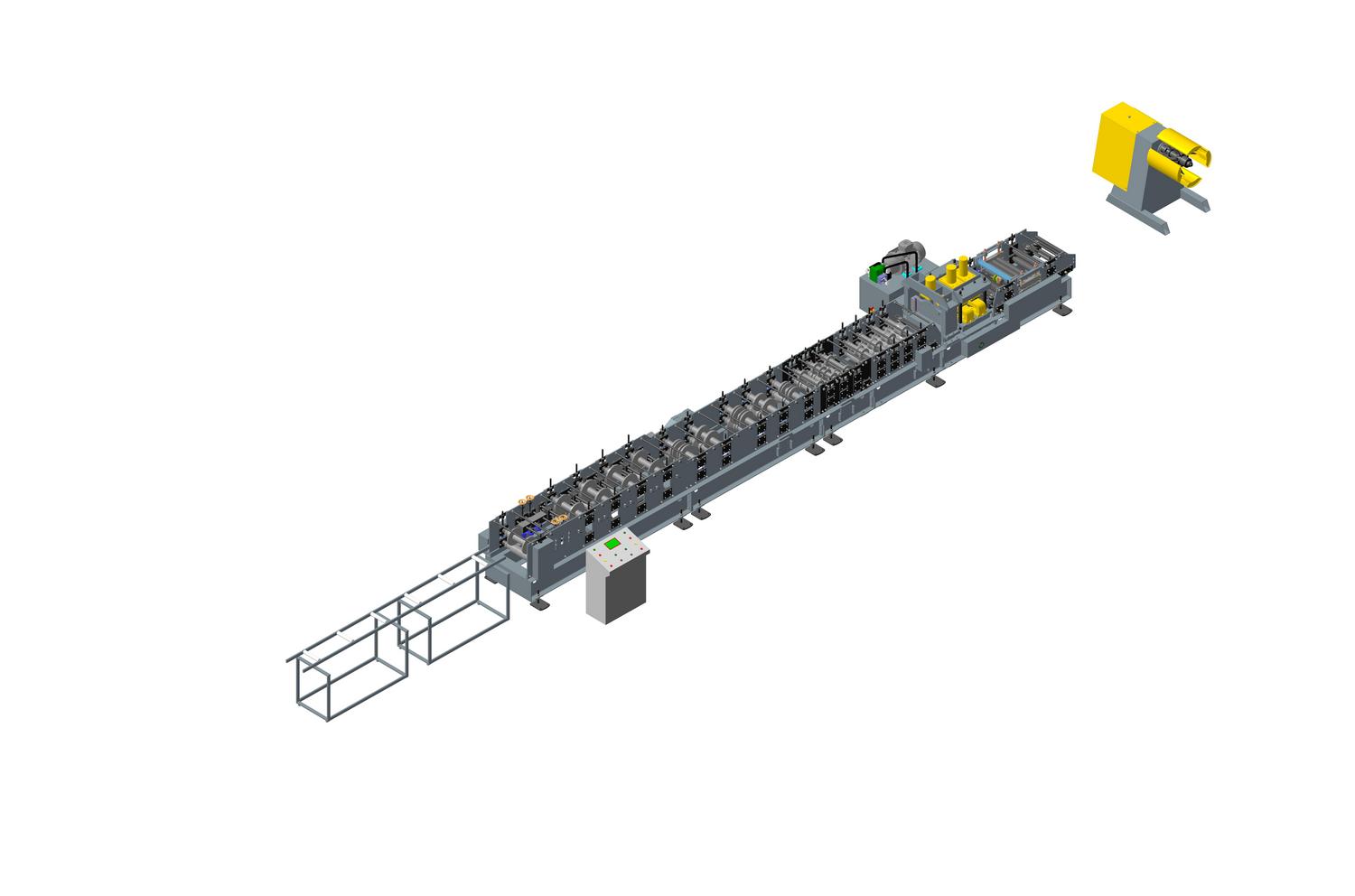

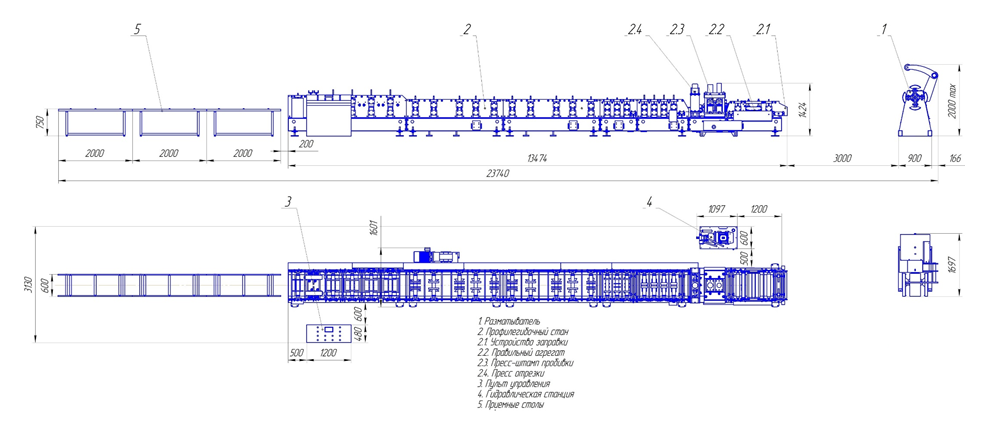

Equipment
Decoiler
1 pc;
Film applicator
1 pc;
Profile punching device
1 pc;

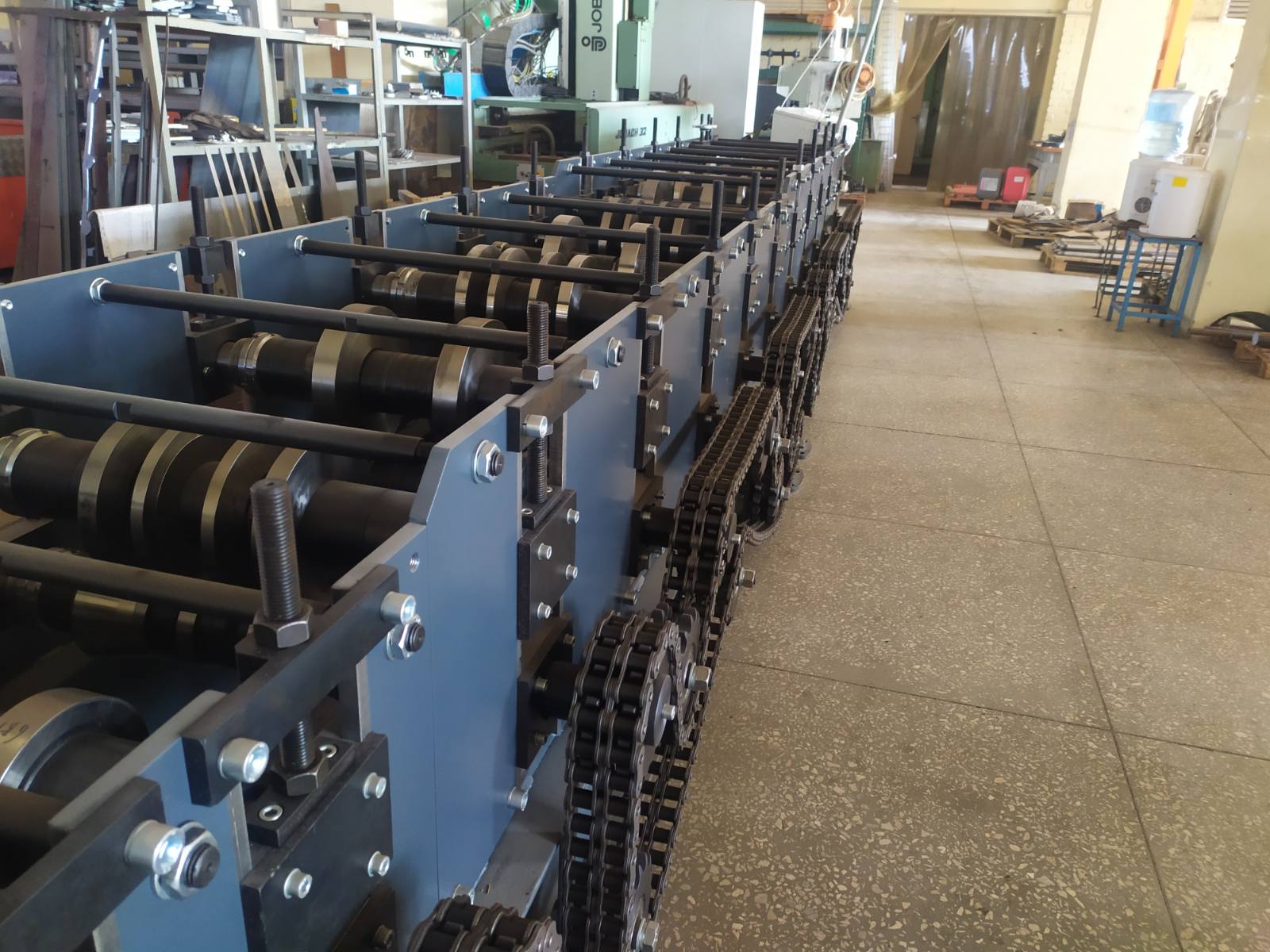

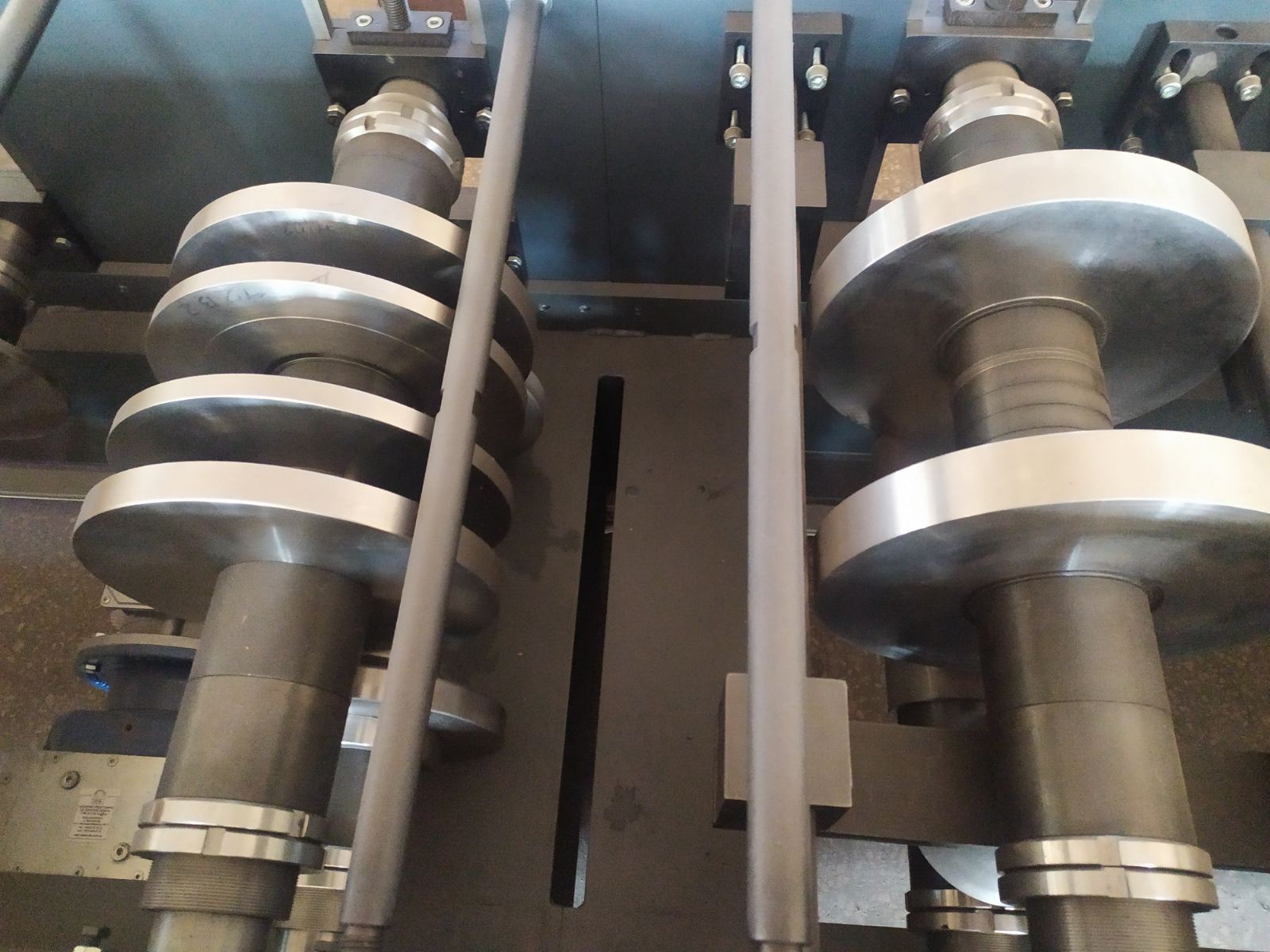

Profile roll forming machine
1 pc;
Guillotine scissors
1 pc;
Receiving table stacker
1 pc;
Control cabinet
1 pc;
Options
- Fences, sensors, cameras of critical areas, monitors;
- Tracking module (Operation, maintenance, simple, remotĕ access, statistics. Tracking of the line by the management.);
- Logistics and packaging
Description

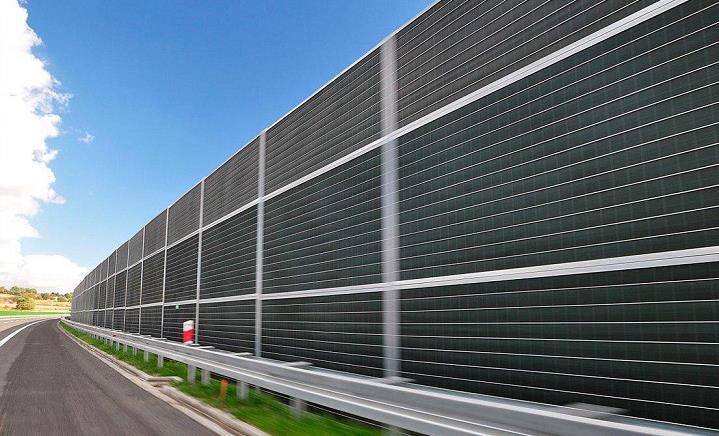

Meer group is engaged in the production of equipment for the production of noise-insulating / noise-absorbing screens, which are designed to reduce the noise of traffic flows of highways, railways, airfields, noise in public and industrial buildings, for wall cladding of automobile and railway tunnels, subway tunnels, elevator shafts.
Specifications
Processed material
Galvanized sheet steel, rolled sheet steel with protective and decorative paint and varnish coating (steel grade DX-52 DX-53)
Thickness of the processed material
0,35 - 1,2 mm
Bar width
According to drawings
Height of the profile
According to order
Profiling speed
25 run. m./min.
Cutting accuracy
+/- 5 mm.
Decoiler lifting capacity
10 000 kg
Decoiler type
Rack / console electromechanical
Work mode
Semi-automatic
