Additional elements of the roof
Solutions inspired by your ideas and our experience
Equipment
Decoiler
1 pc.

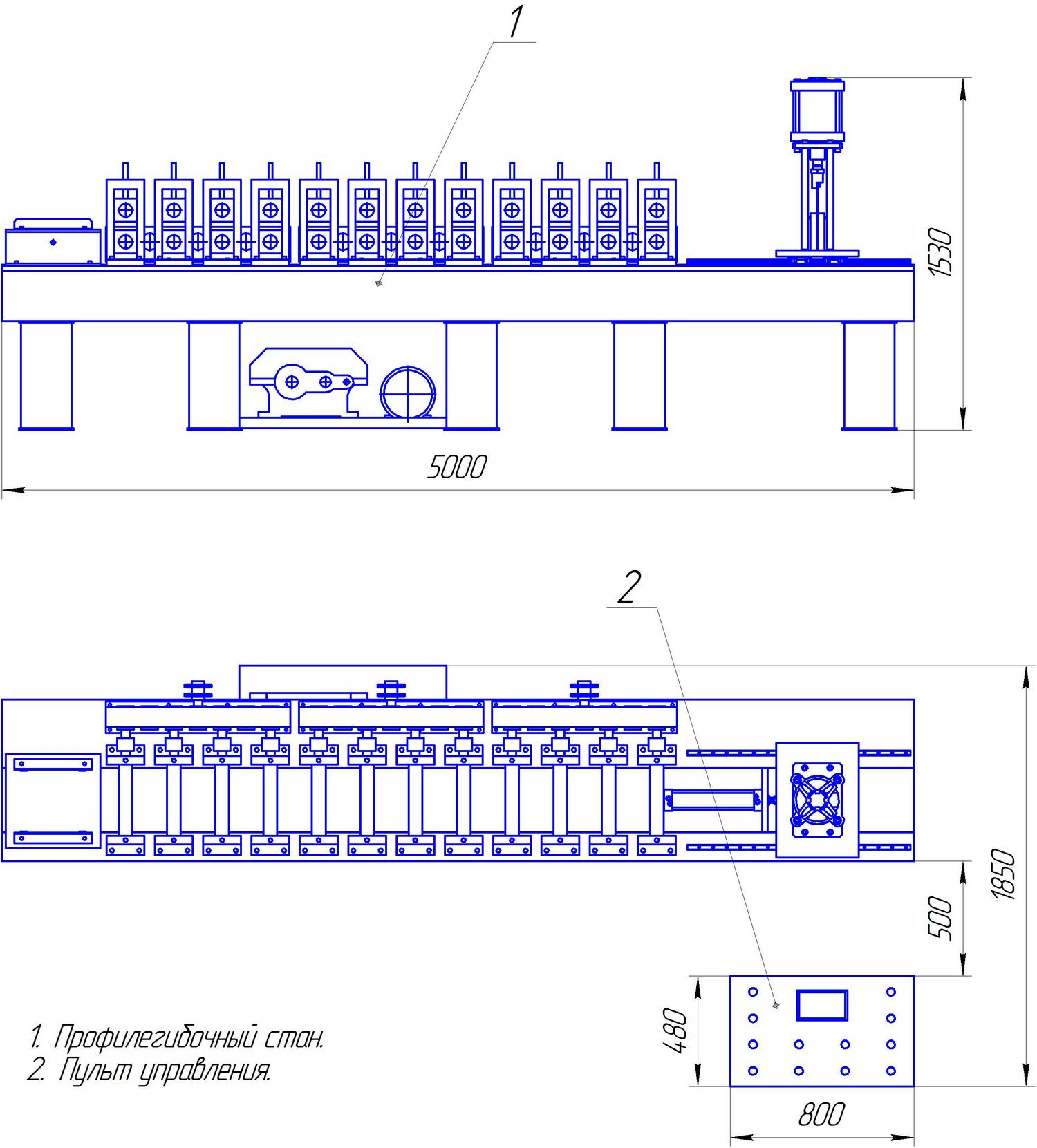

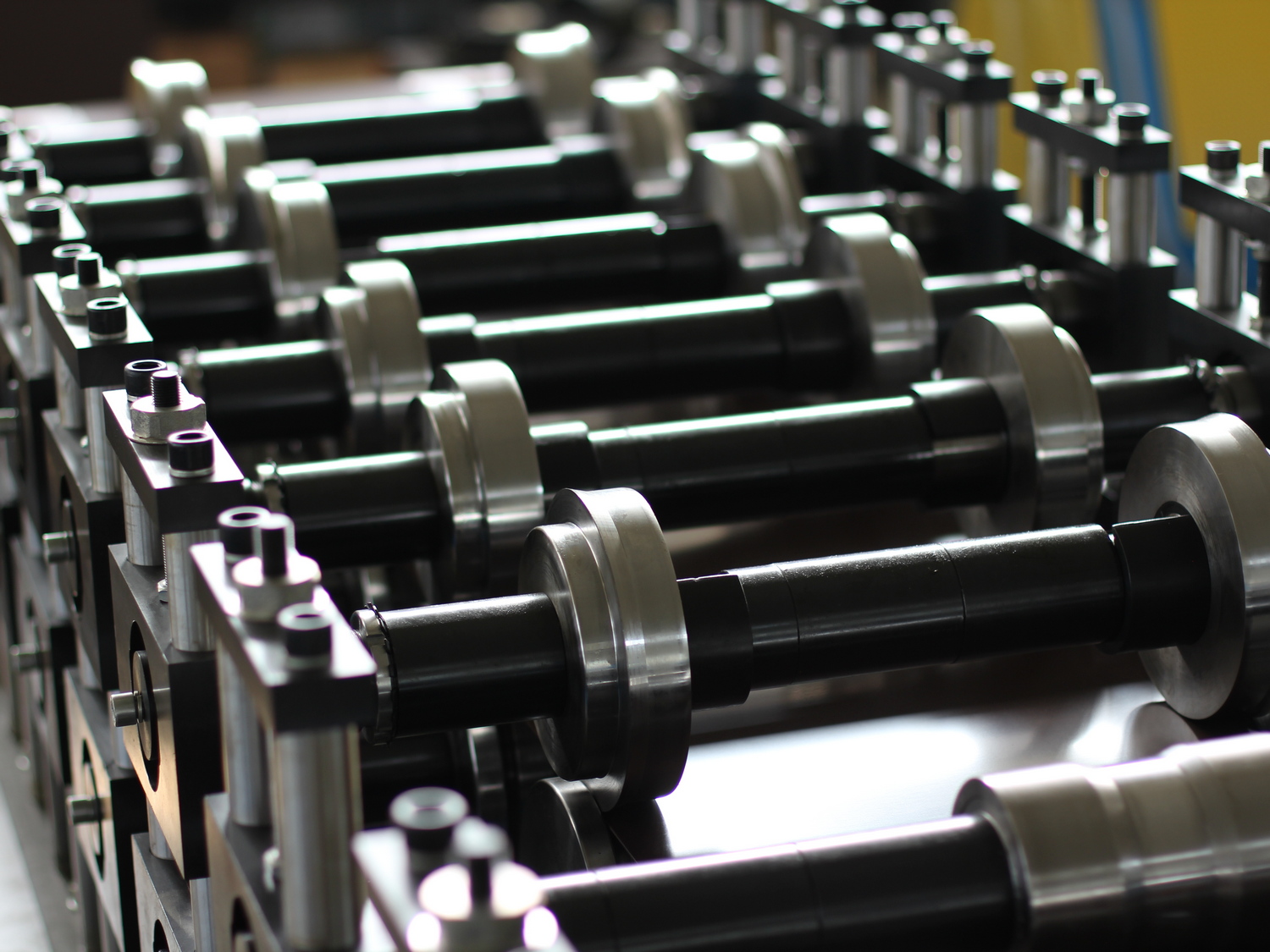

Roll forming mill
1 шт.
Cutting device
1 pc.
Receiving table-roller conveyor
2 pcs.
Control cabinet
1 pc.
Options
- Fences, sensors, cameras in critical areas, monitors;
- Tracking module (Work, maintenance, simple, remote access, statistics. Tracking the work of the line by management.);
- Logistics and packaging.

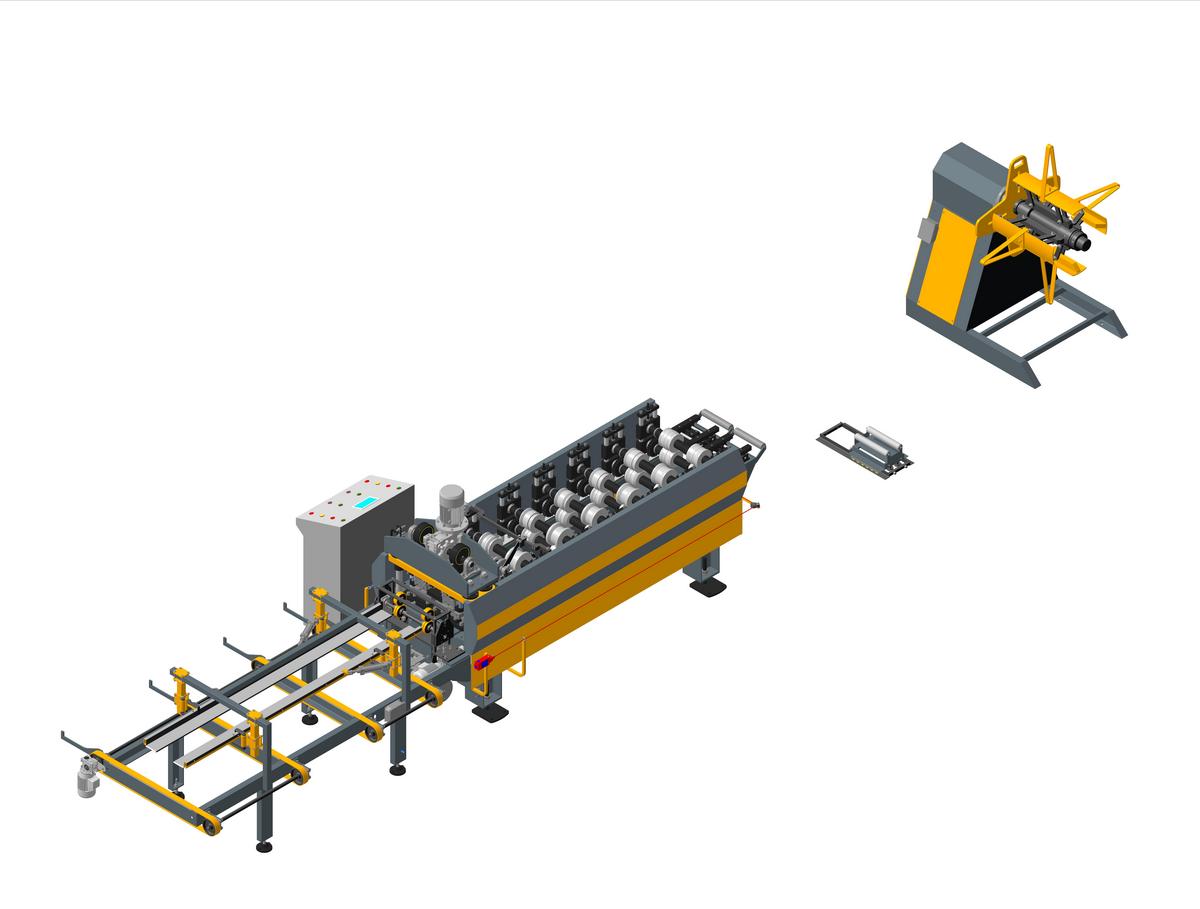

Description of the line

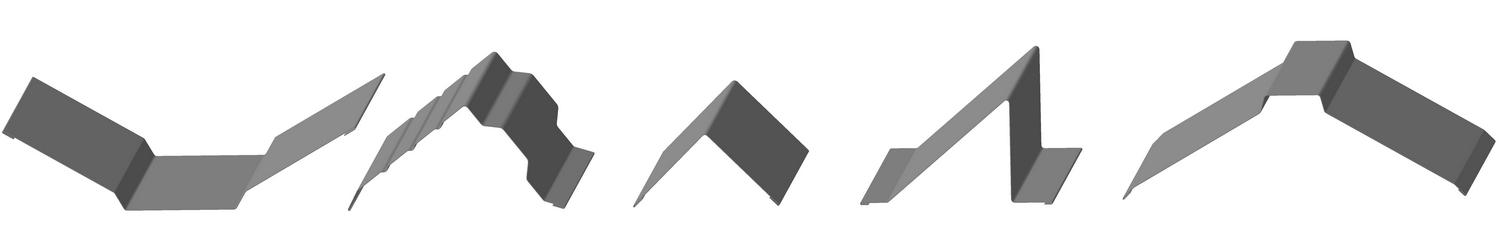

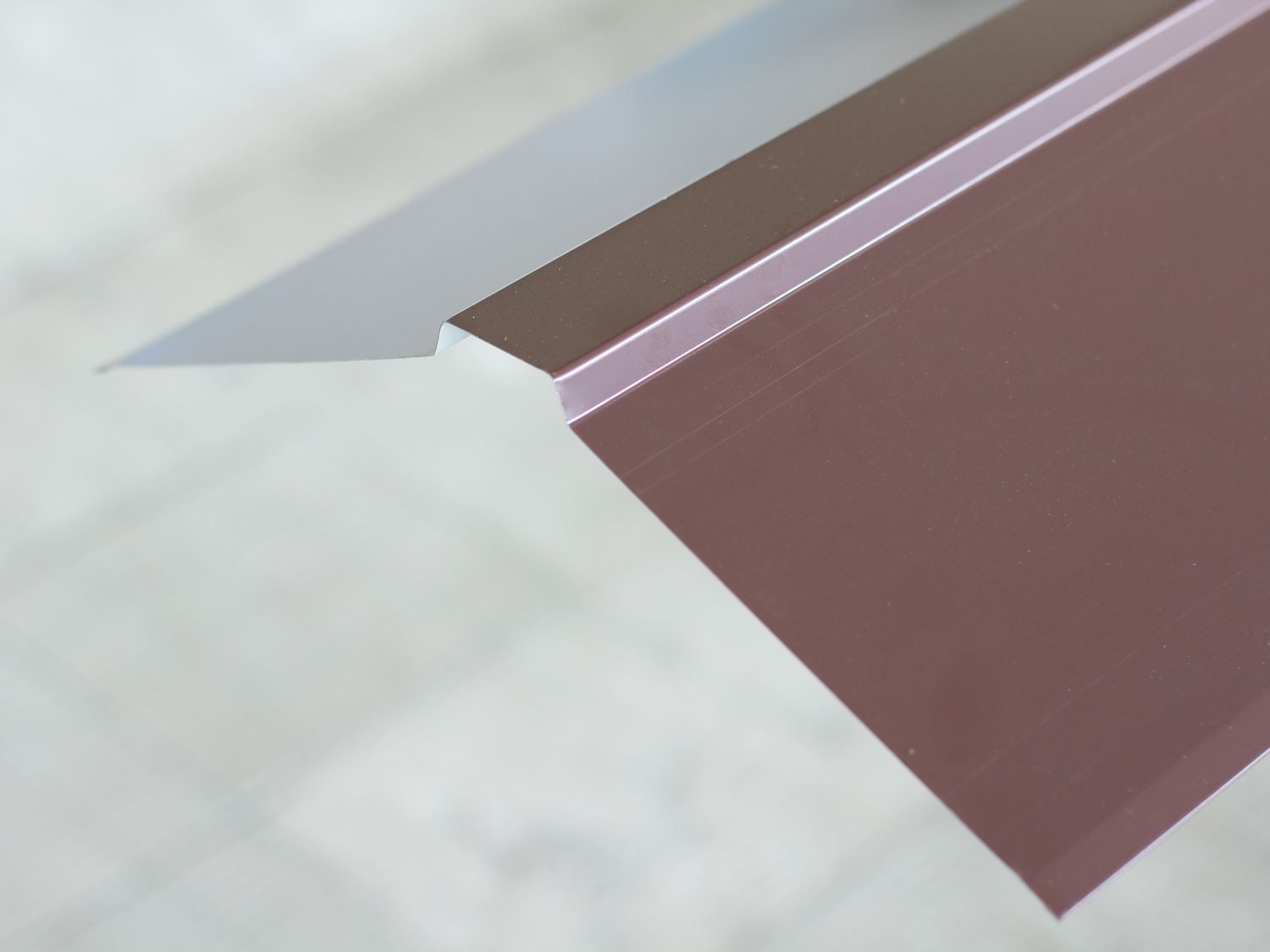

The lines are designed for the production of additional elements (snow guard, valley strip, end strip, wind strip, cornice strip, ridge profile) from thin sheet steel with a thickness of 0.3 to 0.5 mm.
All these elements are necessary to isolate roof fractures, cornices, wind ends, and also protect against dust, wind, rain, and other precipitation.
Specifications
Processed material
Thin sheet galvanized Steel, with plastisol or pural coating. Sheet steel class: S220GD+Z –S320GD+Z
Material thickness
0,3 - 0,5 mm
Workpiece width
According to drawings
Profiling speed
25 run. m. / min
Cut-off accuracy
± 1 mm/ 1000 mm
Work mode
Semi-automatic
Control cabinet
Provides automatic operation of the line after filling the material into the roll forming machine, equipped with a frequency converter
Operation staff
1-2 persons
