Road barriers
Solutions inspired by your ideas and our experience

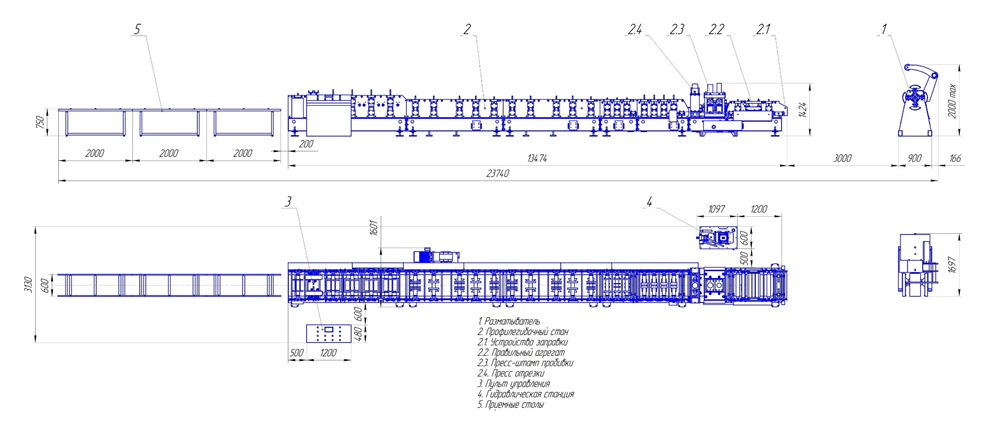

Equipment
Decoiler
1 pc.

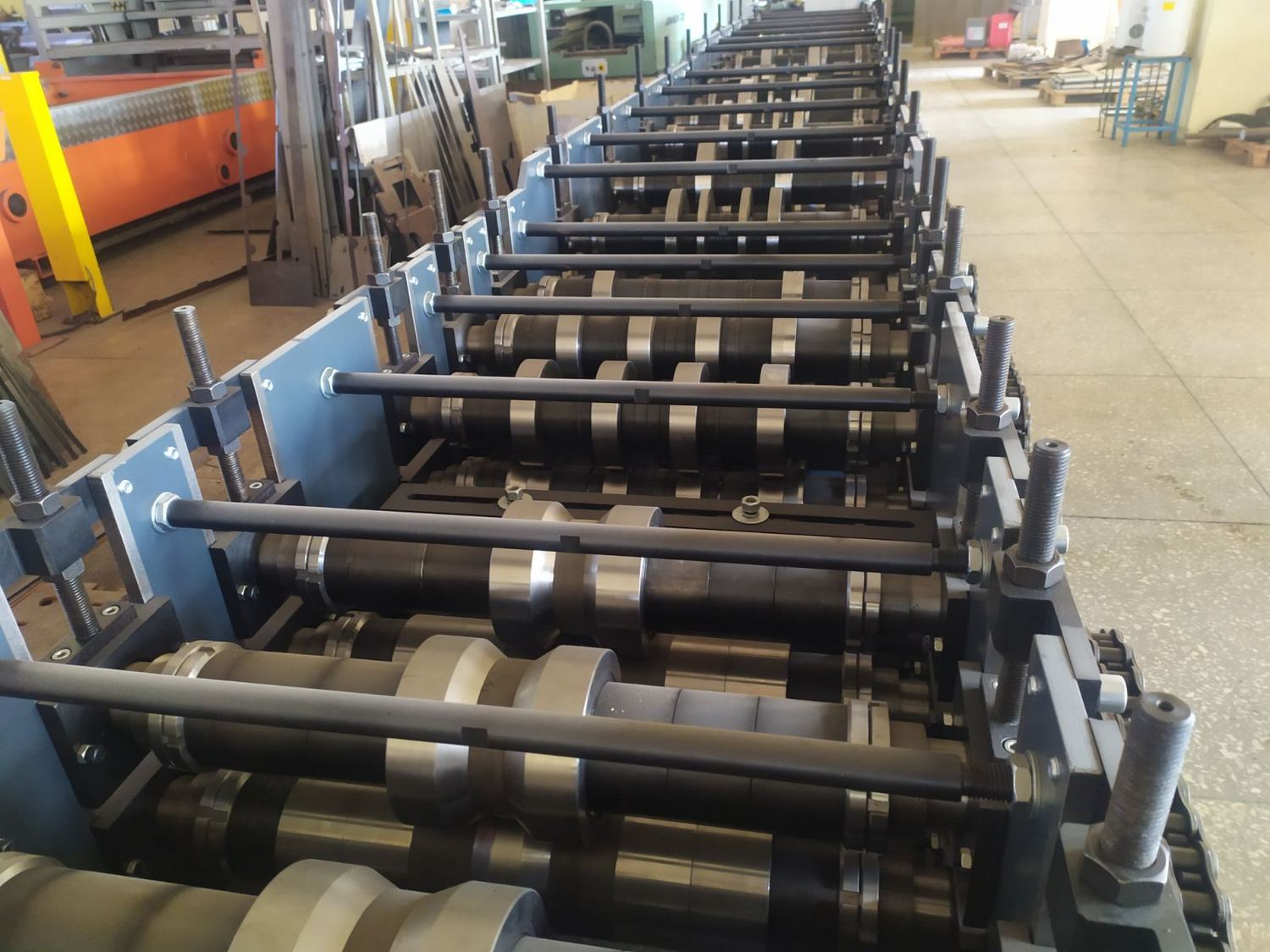

Roll forming mill
1 pc;
Press-stamp
1 pc;
Cutting device
1 pc;
Hydraulic station
1 pc.
Receiving table
1 pc.
Control cabinet
1 pc.
Options
- Replaceable stamp equipment;
- Double stamps;
- Fences, sensors, cameras of critical areas, monitors;
- Tracking module (Work, maintenance, simple, remote access, statistics. Tracking by the management of the line.);
- Logistics and packaging.

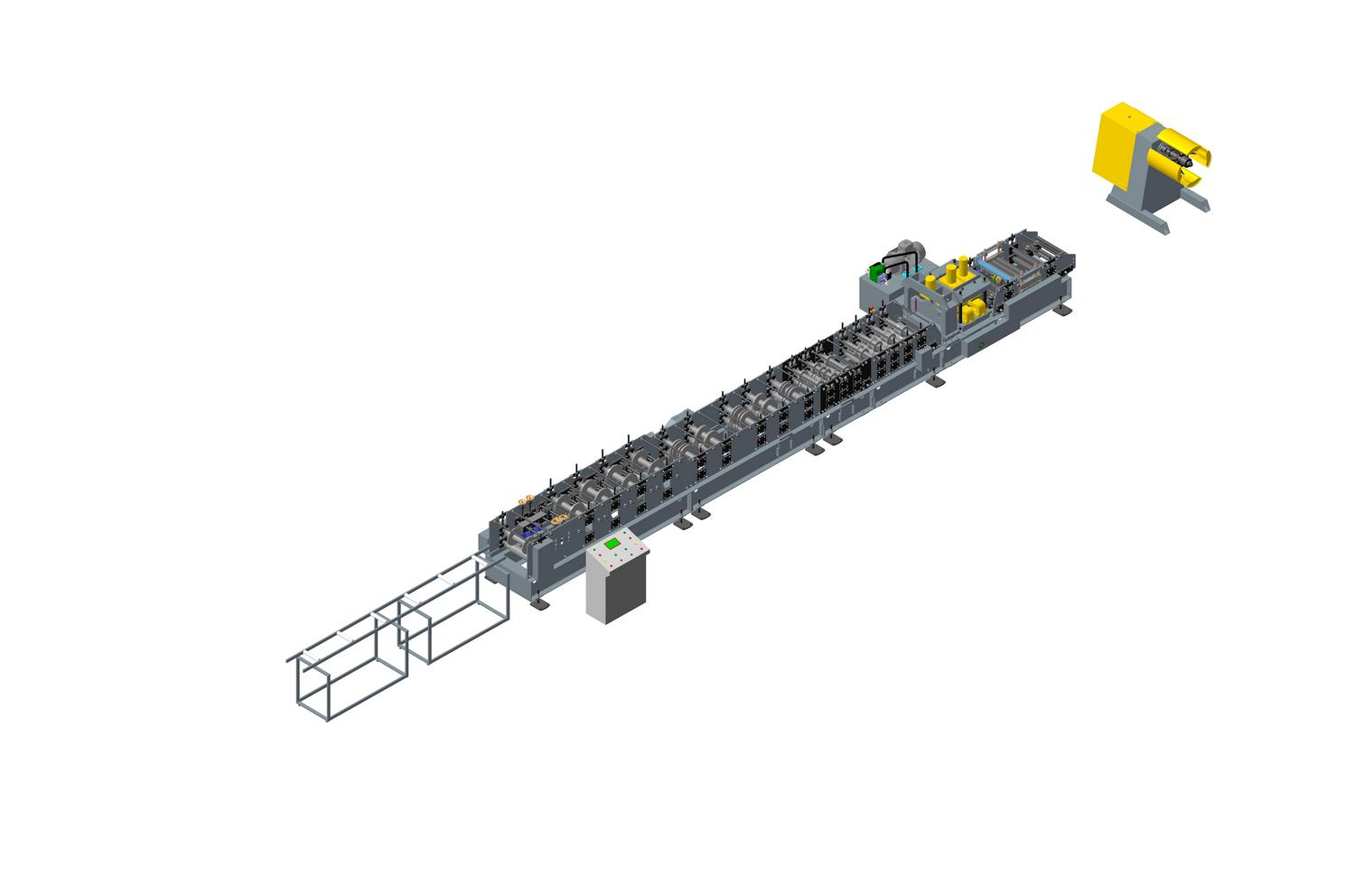

Description of the line
This type of equipment is designed for the production of road barrier beams (two and three waves) from thin sheet steel, which are used in civil engineering and serve to improve safety on highways.
Specifications
Processed material
Thin-sheet galvanized Steel grades DC01, DC04
Thickness of the processed material
Up to 4,0 mm.

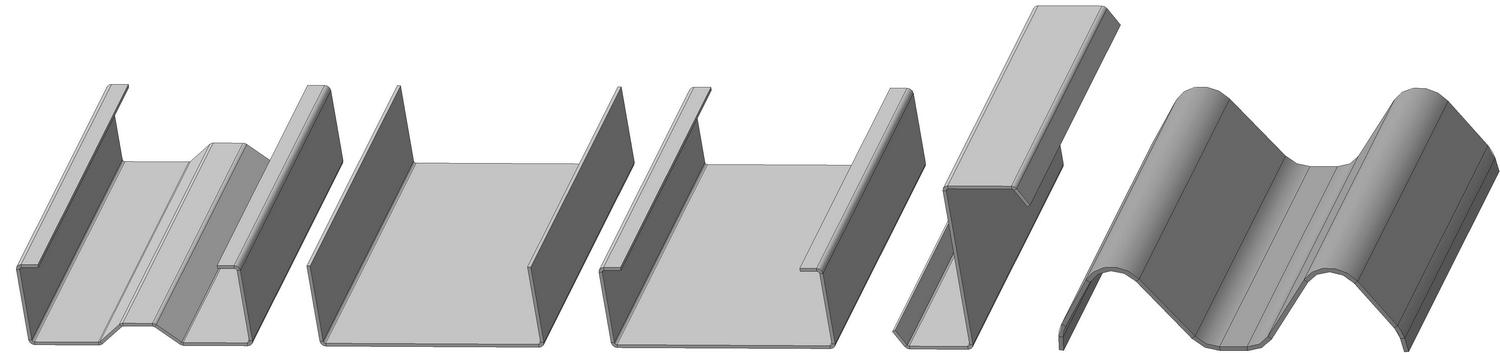

Produced profile type
Guardrail beam
Workpiece width
According to the sketch
Profiling speed
30 run. m. /min
Number of working stand pairs
Up to 24 pcs.
Accuracy of cut-off
± 5 mm
Type of cutting device
Hydraulic
Type of decoiler
Cantilever driven
Decoiler load capacity
3000 kg
Work mode
Semi-automatic
Drive
Electromechanical

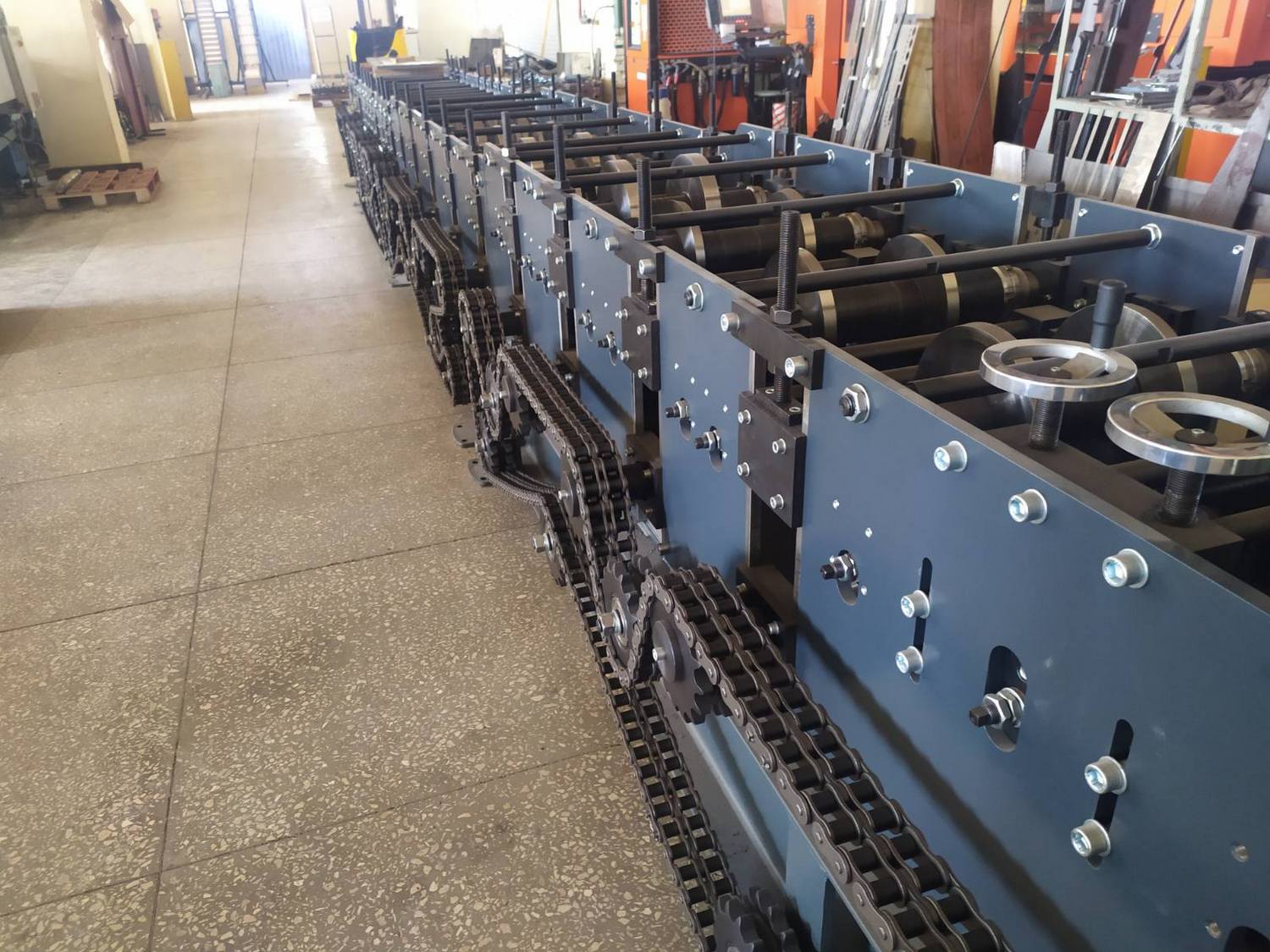

Gear
Chain
Control cabinet
Ensures automatic operation of the line
Operating personnel
2 persons
