Reinforcing profile
Solutions inspired by your ideas and our experience
Equipment
Decoiler
1 pc.

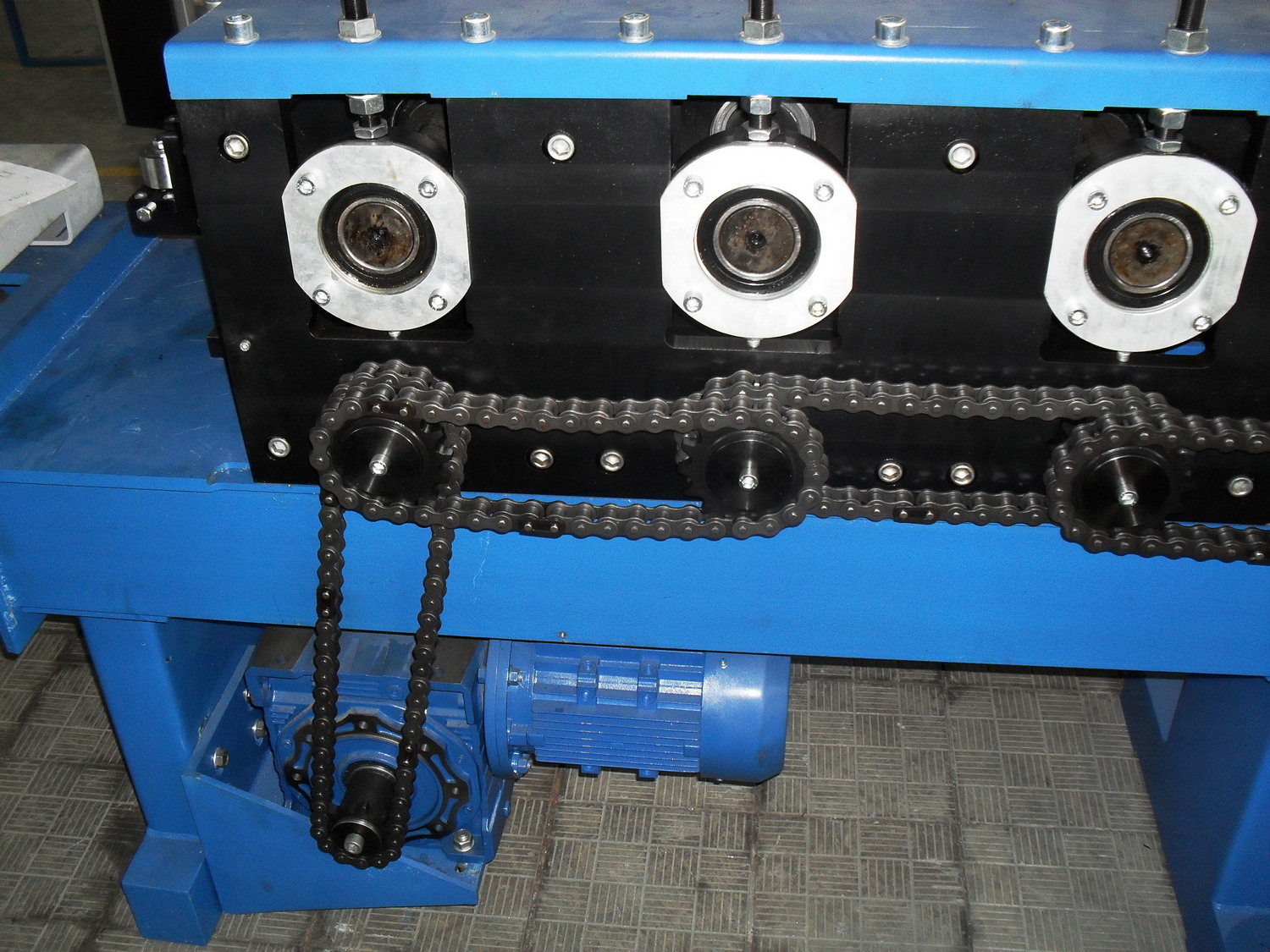

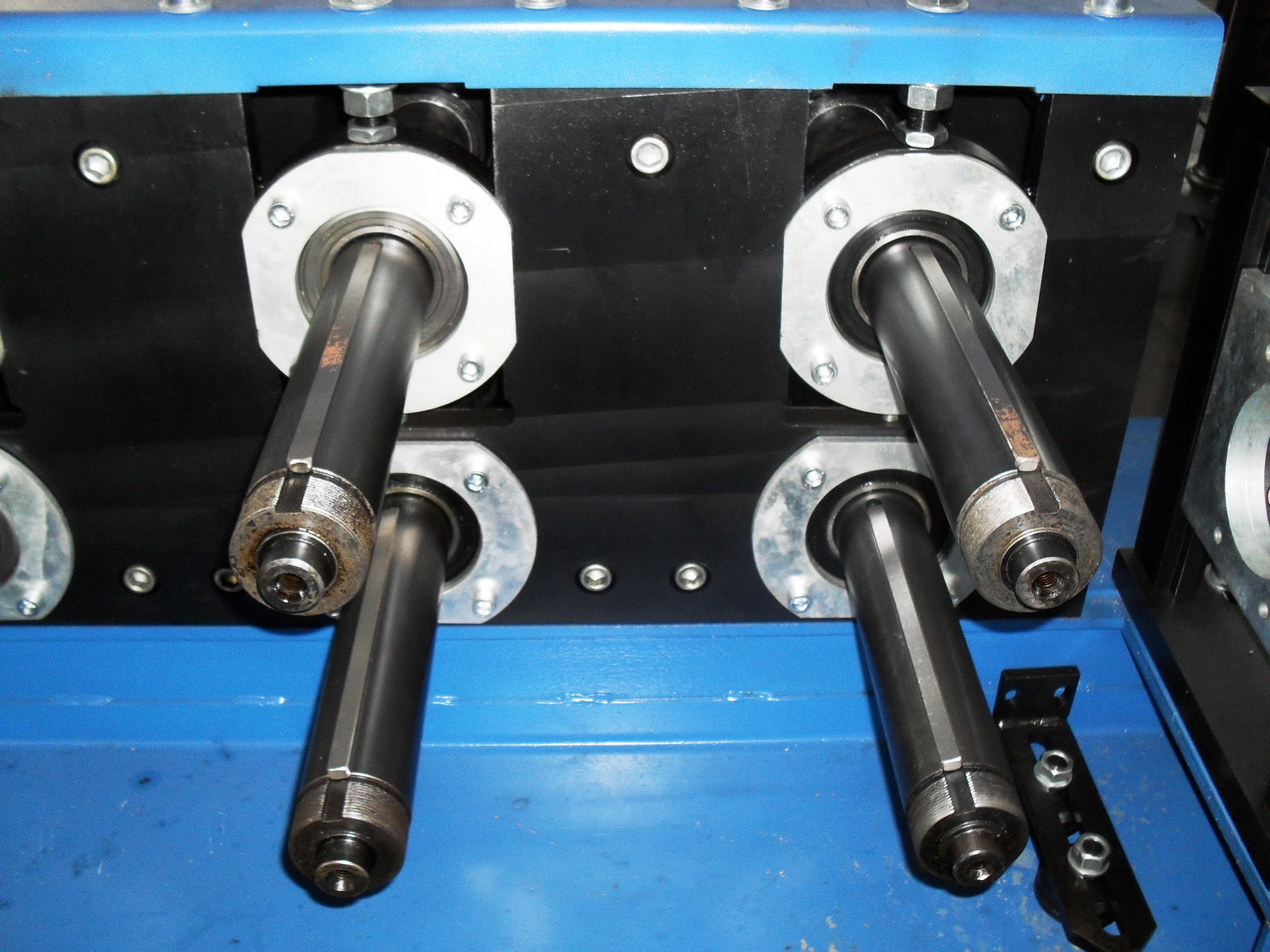

Roll forming mill
1 pc.
Cutting device
1 pc.
Pick-up table
2 pcs.
Control cabinet
1 pc.
Options
- Interchangeable tool kits;
- Fences, sensors, cameras of critical areas, monitors;
- Tracking module (Work, maintenance, simple, remote access, statistics. Tracking by the management of the line.);
- Logistics and packaging.

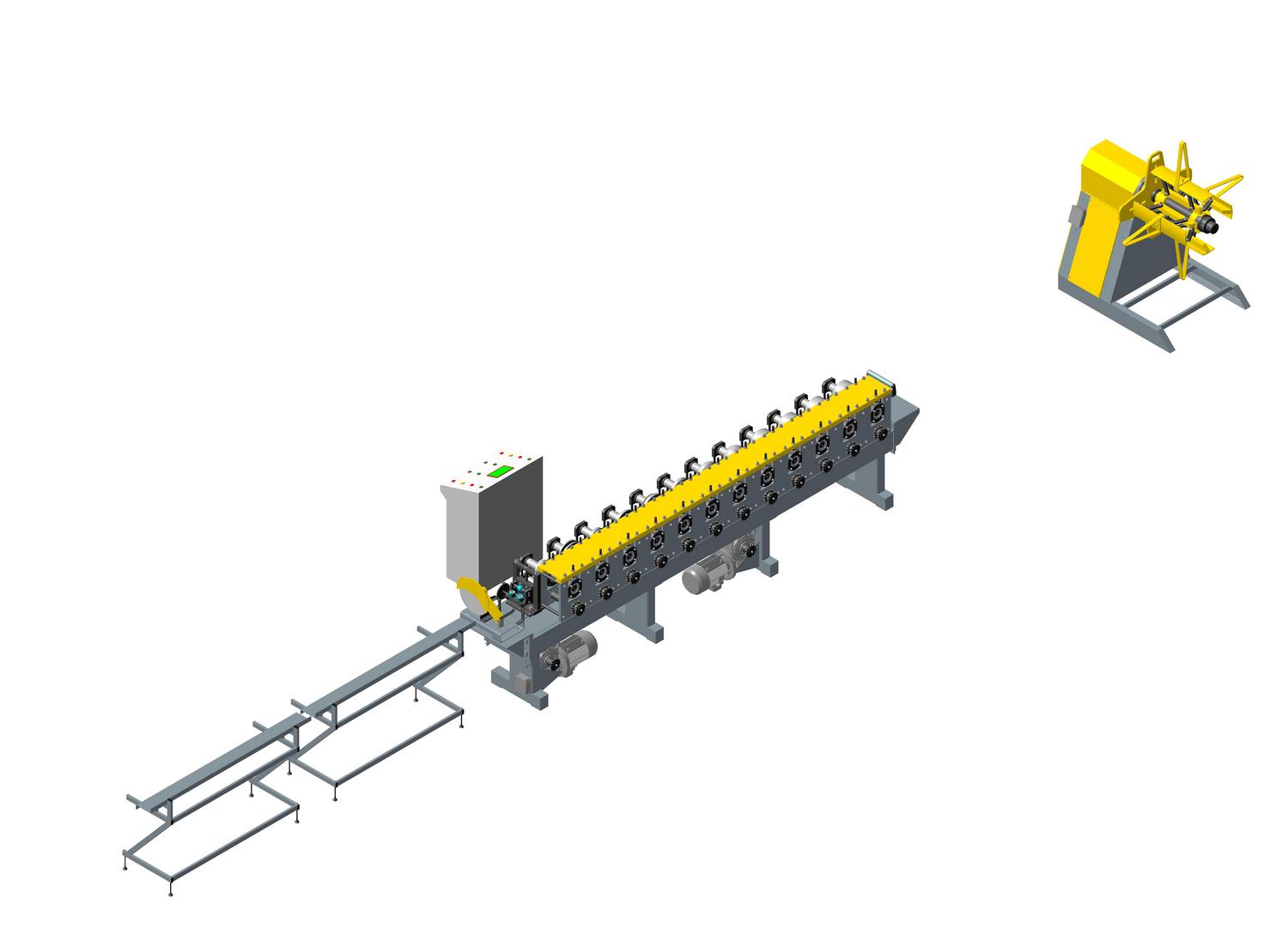

Description of the line

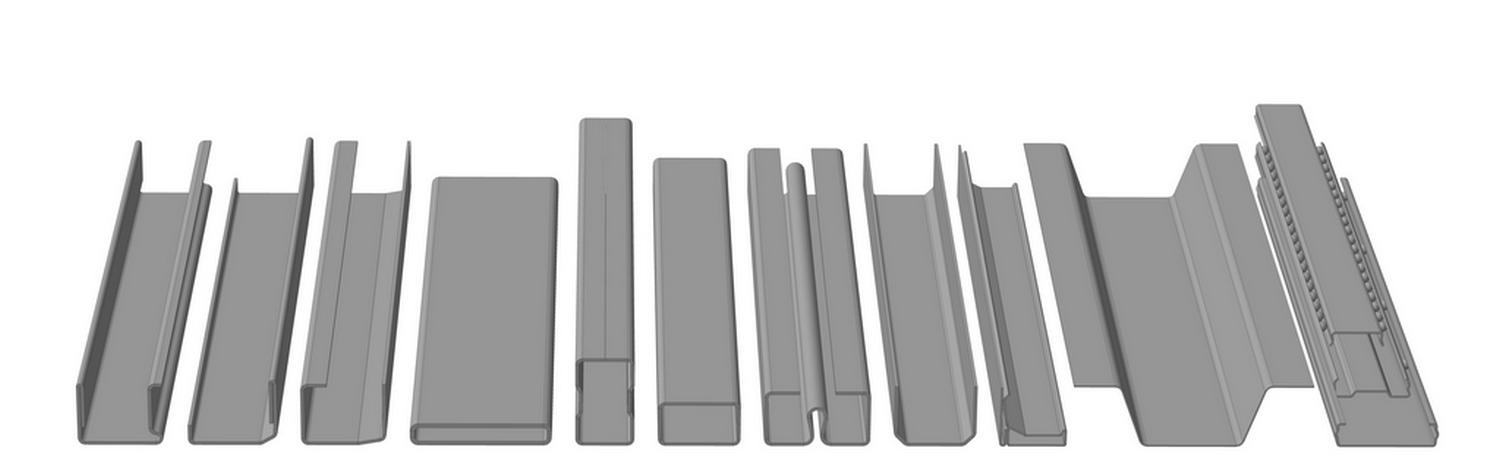

The lines produce reinforcing profiles of PVC systems, open and closed. The profiles are made of thin-sheet galvanized steel with a thickness of 0.8 to 2.0 mm.
Specifications
Processed material
Thin-sheet galvanized steel (steel grade DC01, DC04, application: cold rolling)
Thickness of the processed material
0,8-2,0 mm.
Workpiece width
60-210 mm
Profiling speed
20 run. m. / min
Accuracy of cut-off
± 5 mm
Work mode
Semi-automatic
The maximum length of the profile accepted by the pickup table
4000 mm
Control cabinet
Provides automatic operation of the line after filling the material into the roll forming machine, equipped with a frequency converter
Operating personnel
1-2 persons
