Picket fences and fences
Solutions inspired by your ideas and our experience

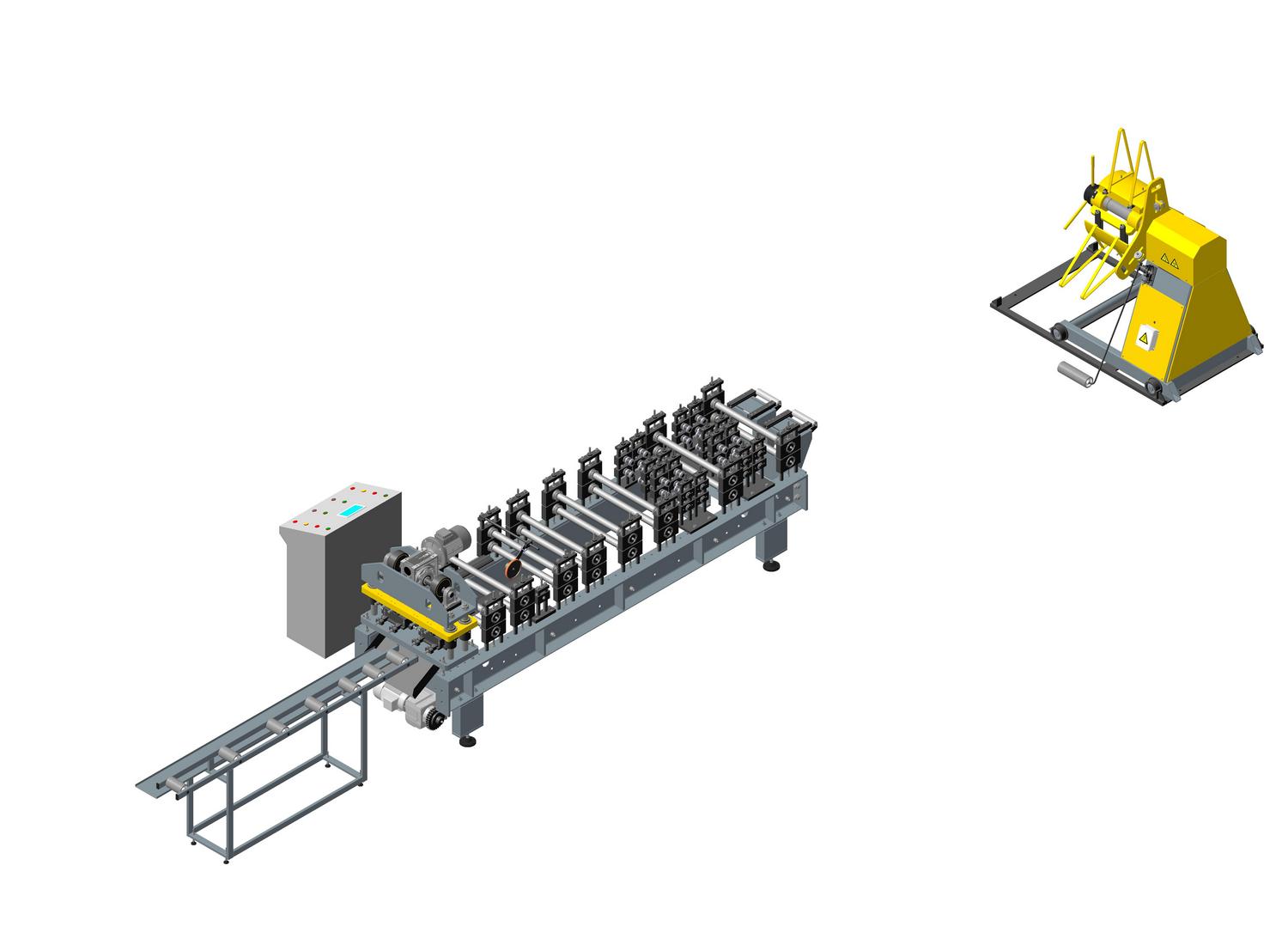

Equipment
Decoiler
1 pc;
Rolling mill
1 pc;
Cutting device
1 pc;
Receiving table
2 pcs;
Control cabinet
1 pc;
Options
- Fences, sensors, cameras of critical areas, monitors;
- Tracking module (Operation, maintenance, simple, remotĕ access, statistics. Tracking by the management of the line.);
- Logistics and packaging.
Description

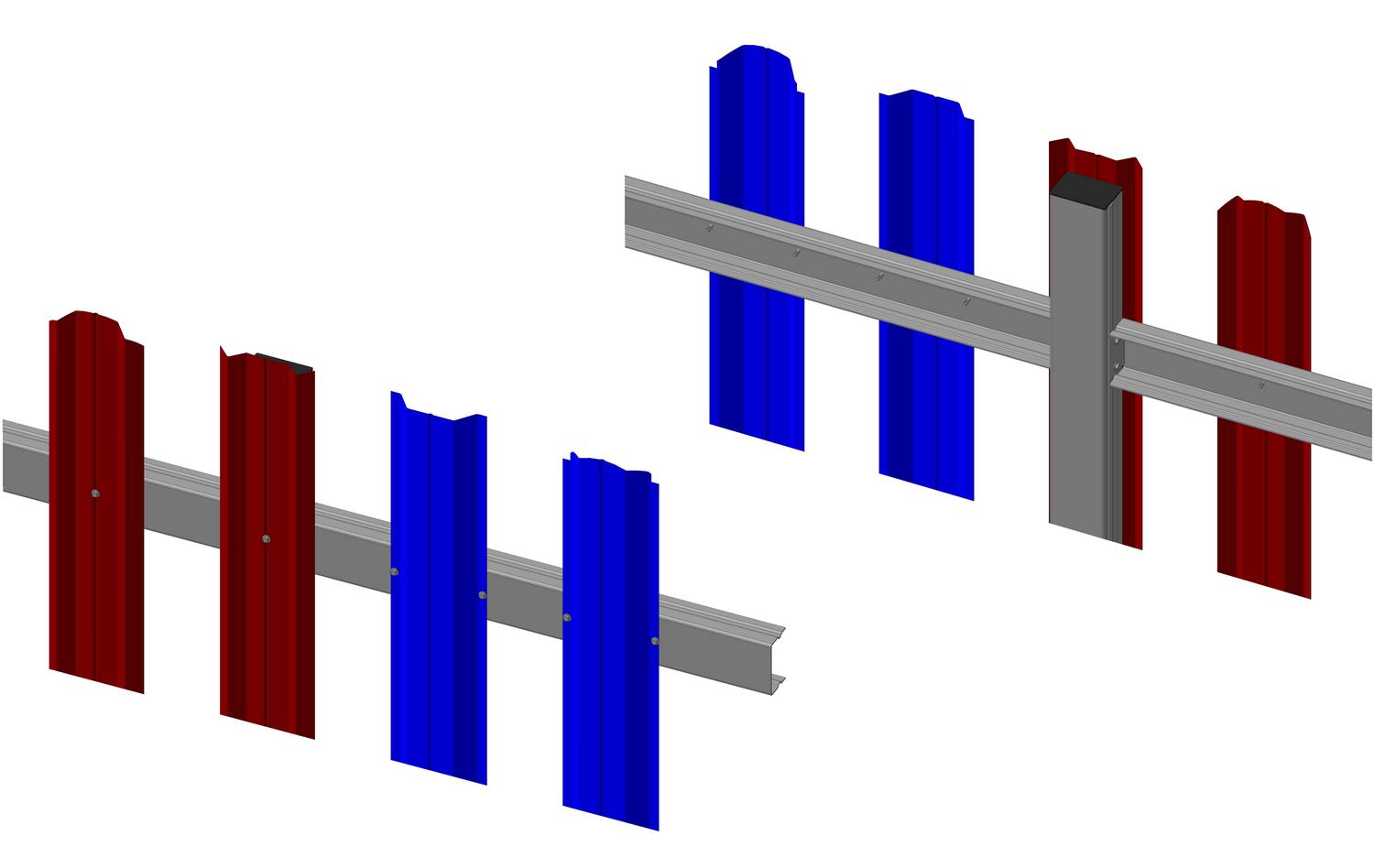

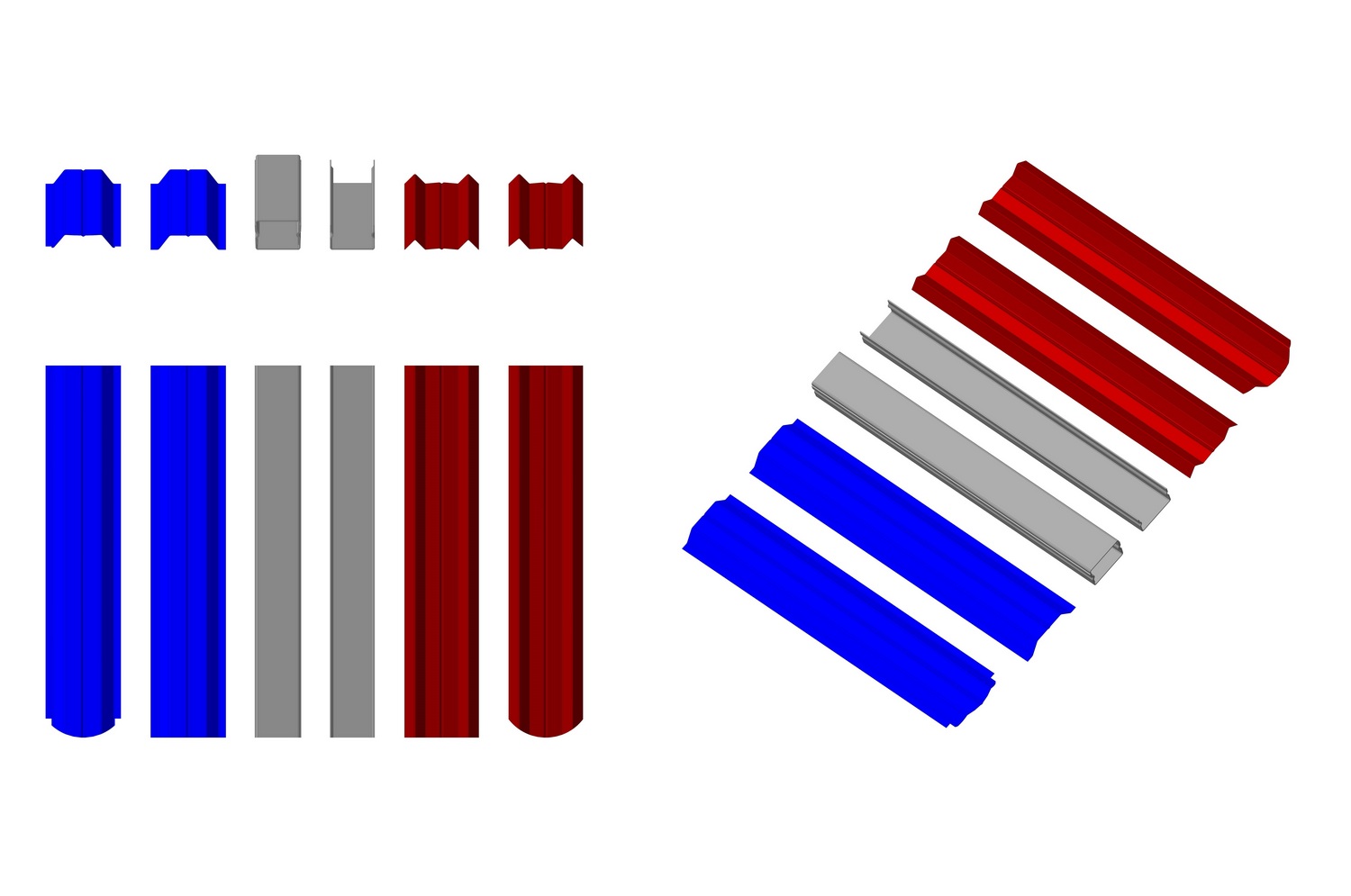

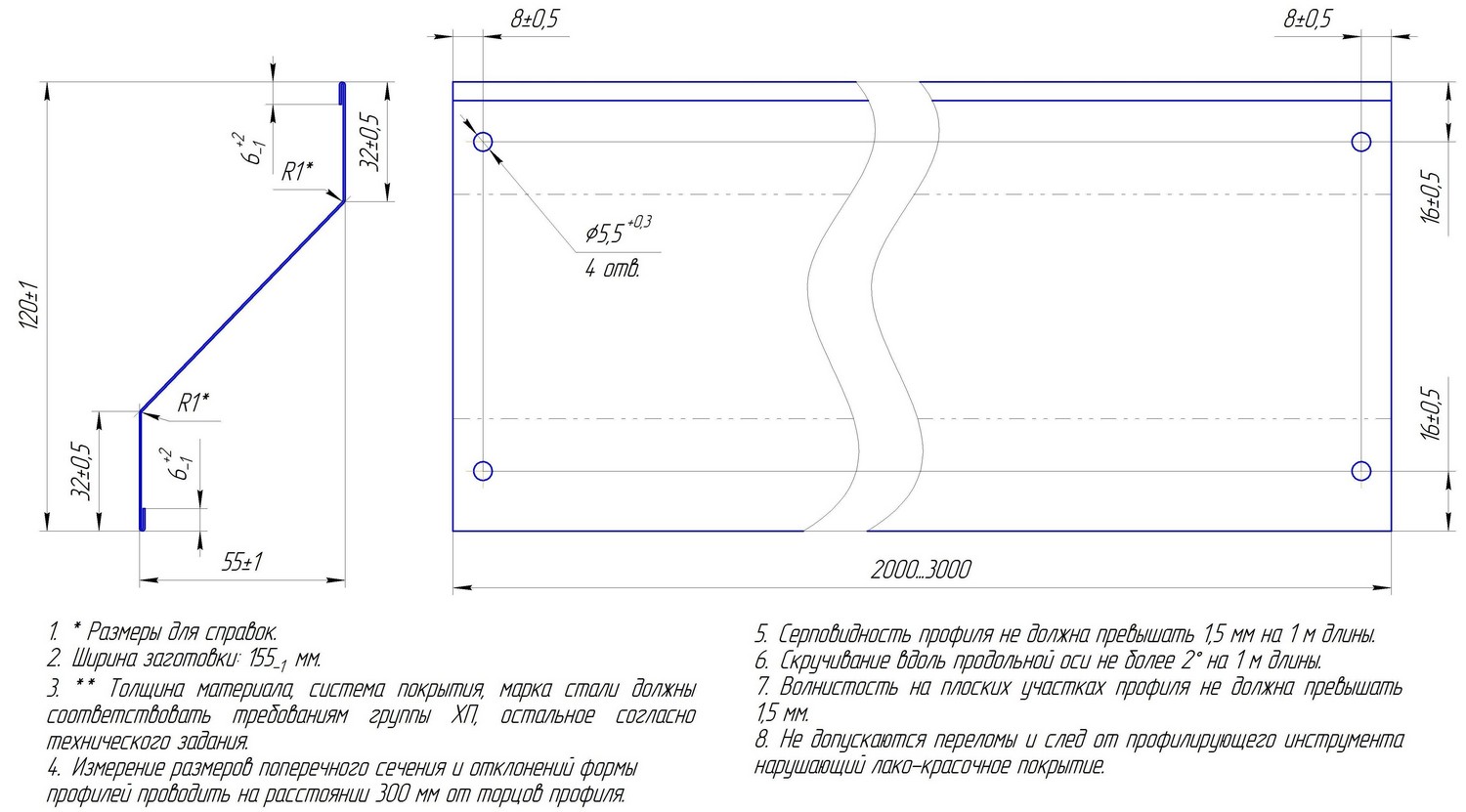

The lines are designed for the production of metal picket fence (M / U, euro fence) and other profiles used for fencing (lamellas, fence-blinds, hat profile) from sheet steel with a thickness of 0.3 to 0.5 mm.
Specifications
Processed material
Rolled sheet metal with protective and decorative paint and varnish coating applied on galvanized steel
Thickness of the processed material
0,3-0,5 mm
Workpiece width
According to drawings
Profiling speed
25 run. m. / min
Accuracy of cutting
± 2 mm

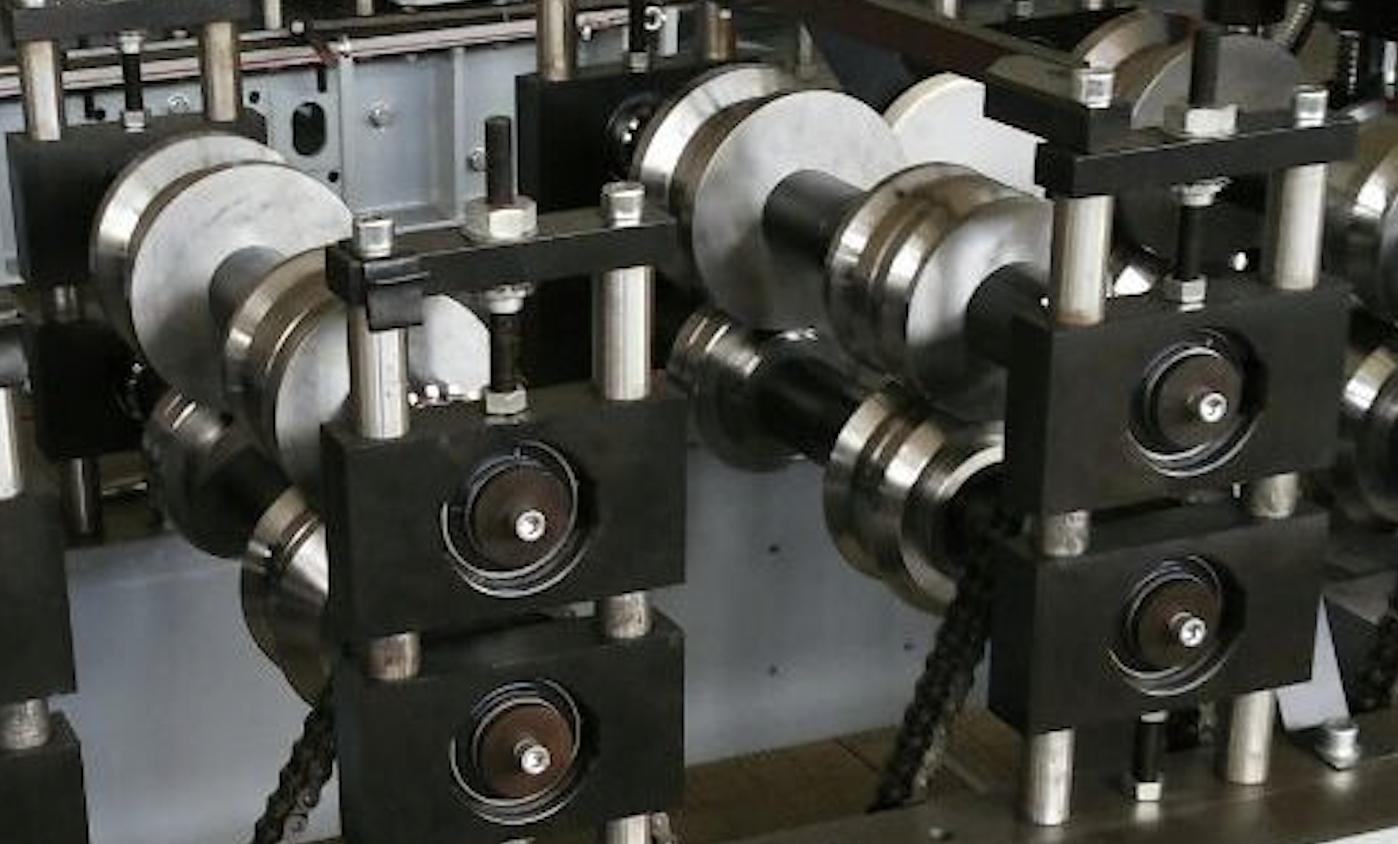

Roll Forming Mill Type
Rack
Control cabinet
Provides automatic operation of the line after filling the material into the roll forming mill, equipped with a frequency converter and CNC
Operation staff
1-2 persons
